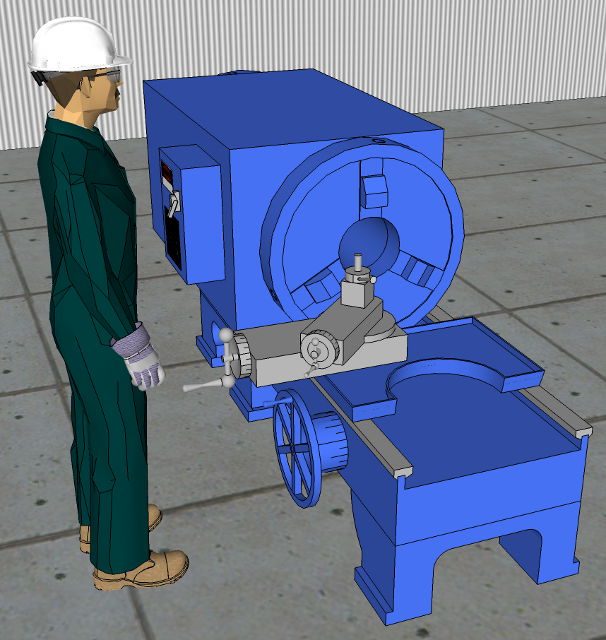

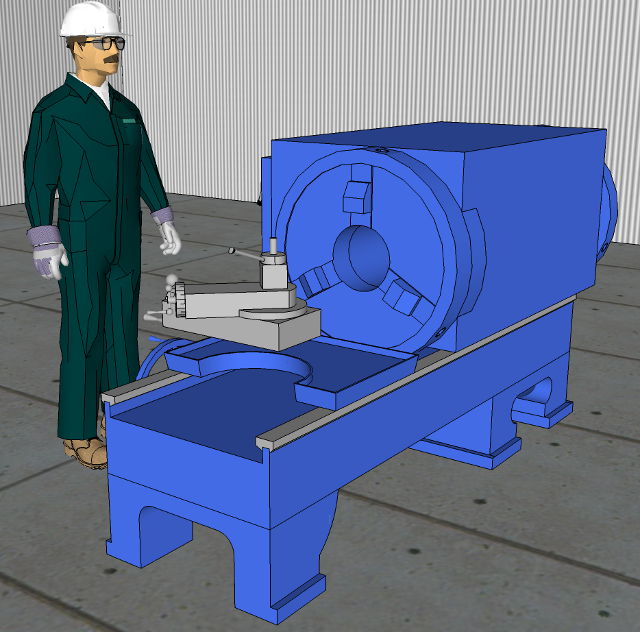

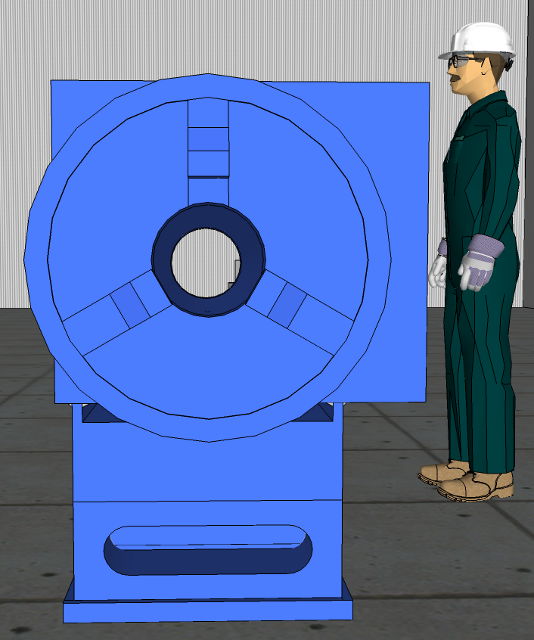

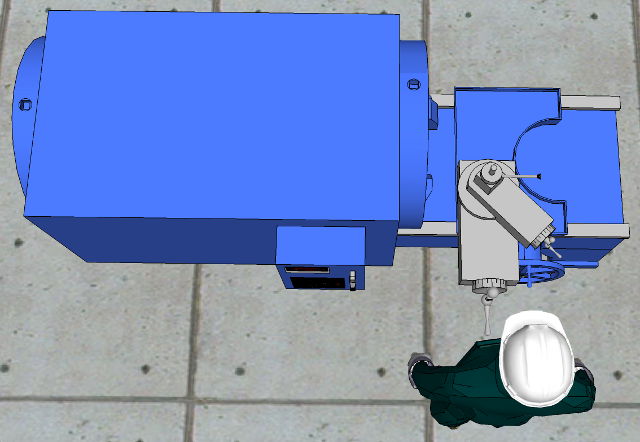

38" x 24” Hollow Spindle “T” Type Lathe; 10” Spindle Hole; Dual 3 Jaw Chucks

(1) Used 38" x 24" BIGNALL-KEELER "T" Type Lathe; 10" Spindle Hole; Dual 3 Jaw Chucks; S/N 4-889 Specifications: Swing Over Bed...........................38" Distance Chuck to Cross Slide............24" (nominal) Distance Floor to Center-Line............40" (nominal) Distance Between Chucks..................59" (face to face) Spindle Hole.............................10 1/8" Spindle Nose............................. Spindle Speeds (9).......................40 - 150 RPM (nominal) Number of Feeds and Threads.............. Feed Range............................... Thread Pitch Range....................... Motor....................................10 HP Electrical Characteristics...............220/440 VAC/ 3 Phase Full Load Current........................ Equipped With:      Dual 3 Jaw Independent Chucks      4-way Tool Post With Tool Bits      Complete Electrical Controls Overall Dimensions.......................108" L-R x 44" F-B x 61" High Weight...................................
