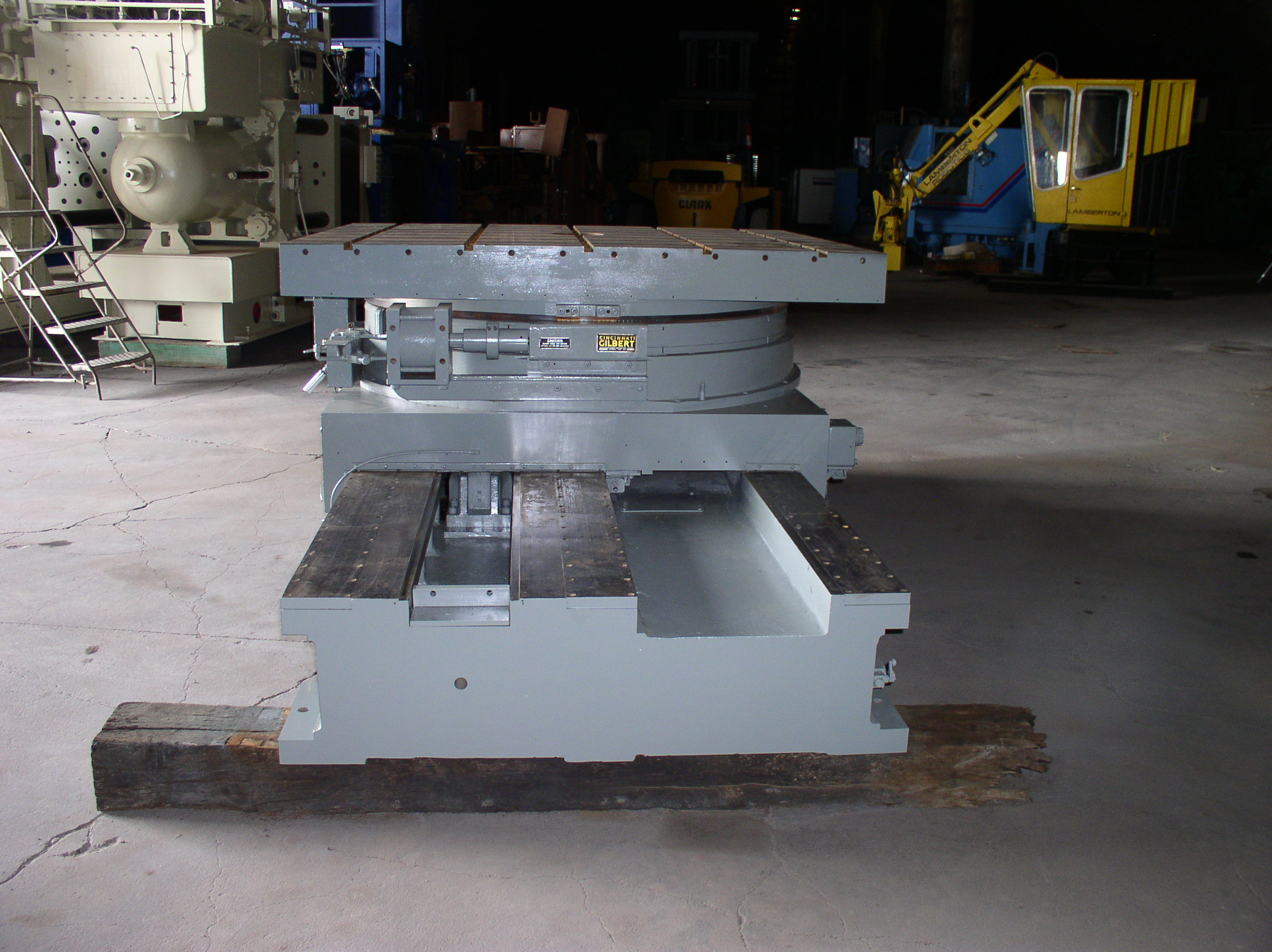

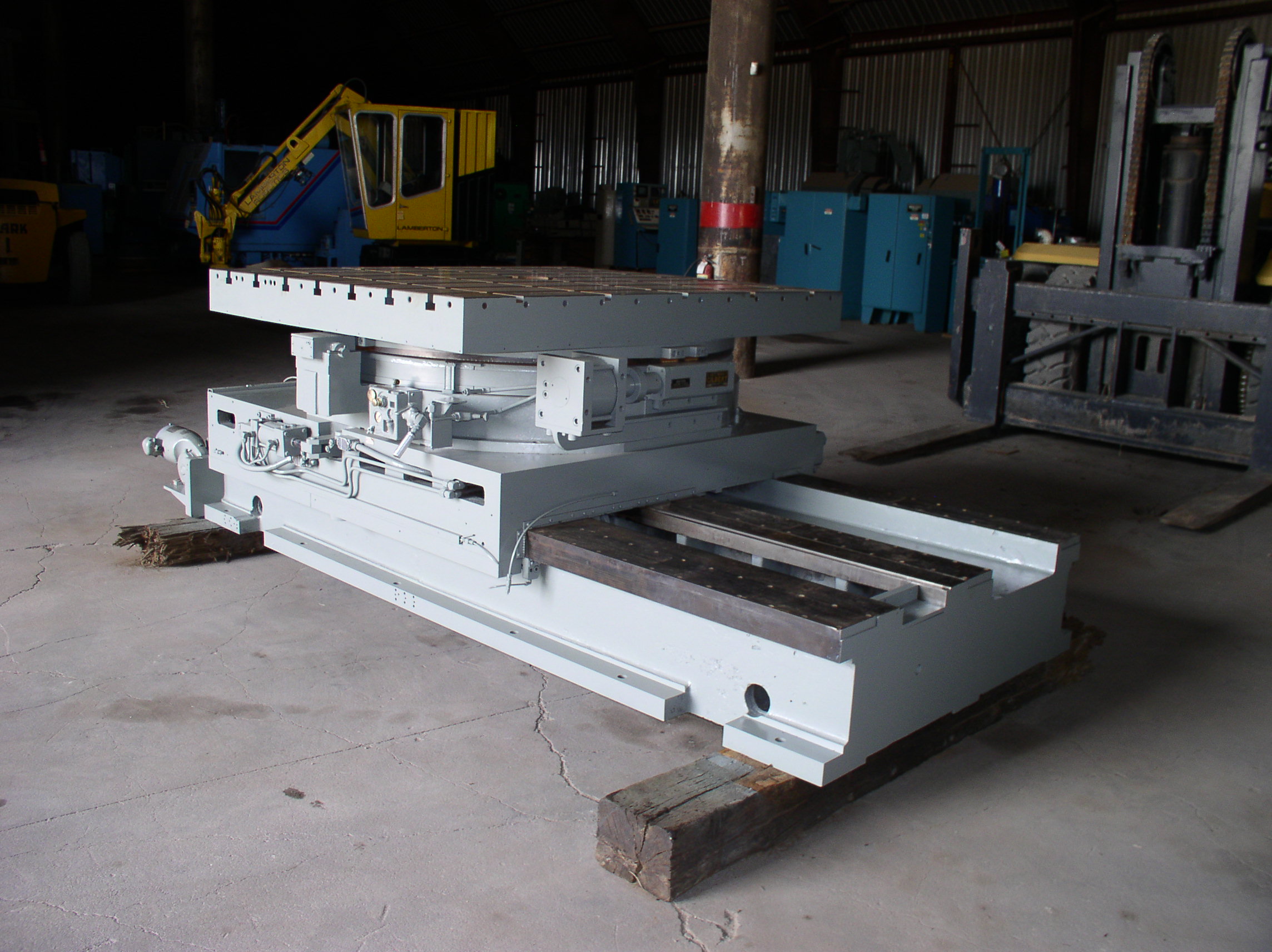

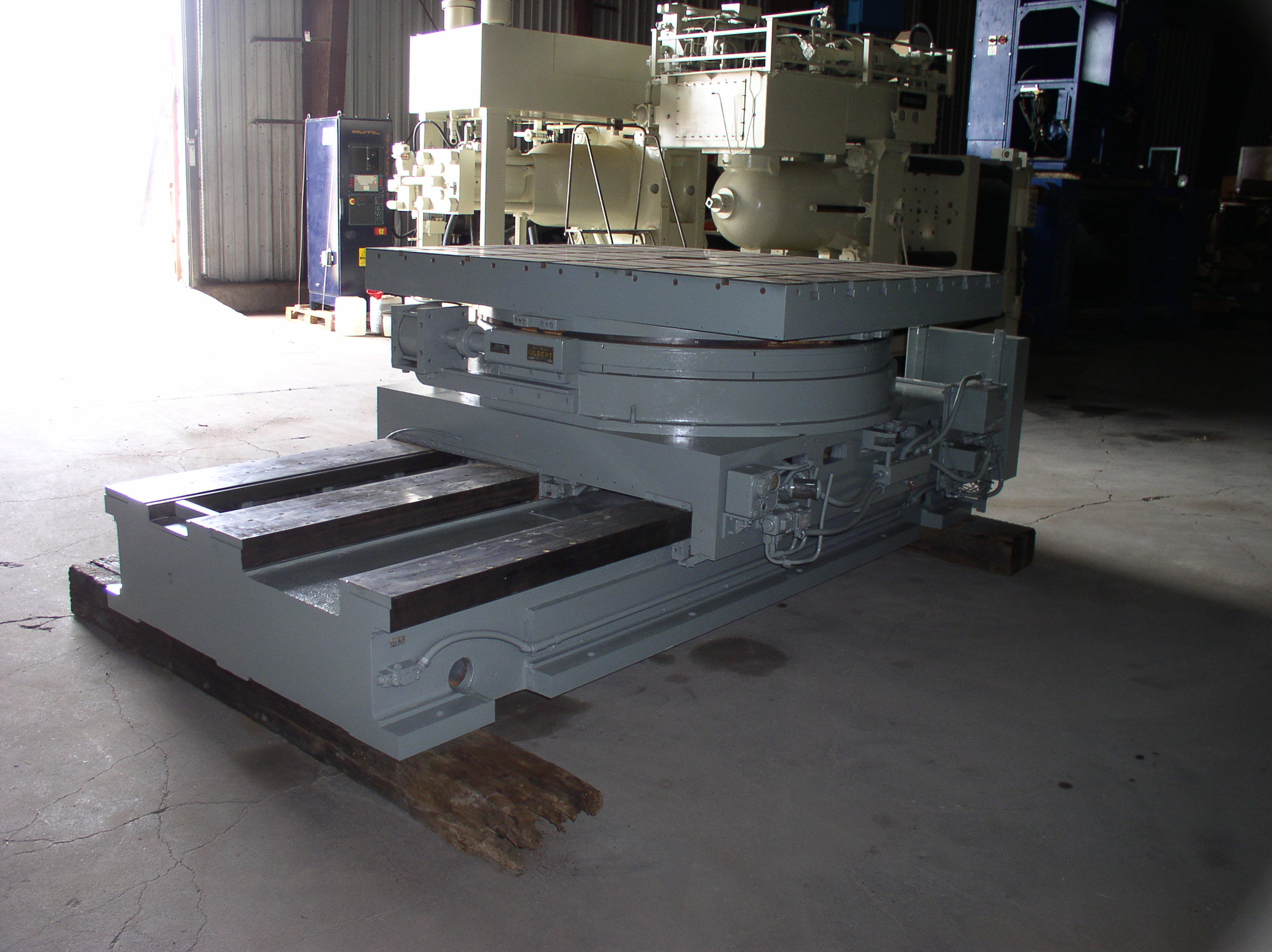

60" x 72" Cincinnati Gilbert Rotary Table with Z Axis

Sold

60" x 72" Cincinnati Gilbert Rotary Table with Z Axis

Location:Casa Grande, AZ

Description

60" x 72" Cincinnati - Gilbert Rotary Table for Floor Type Horizontal Boring Mill Specifications; Table Size............ 60"  x  72"  (T-Slotted) Table Height........ 42"  (From Floor) Table Capacity...... 50,000 lbs. (est0 Z Axis Travel....... 48" Equipped With; 360 Deg. Power Rotation Z Axis Power Feed Rotational Air Lift Rotational Air Lock Centralized Lube system Overall Dimensions;    12 ft.  L-R  x  6 ft.  F-B  x  42" High Weight;    35,000 lbs.  (est) Price;    P.O.R.

Specifications

ConditionUsed
Stock Number3116
