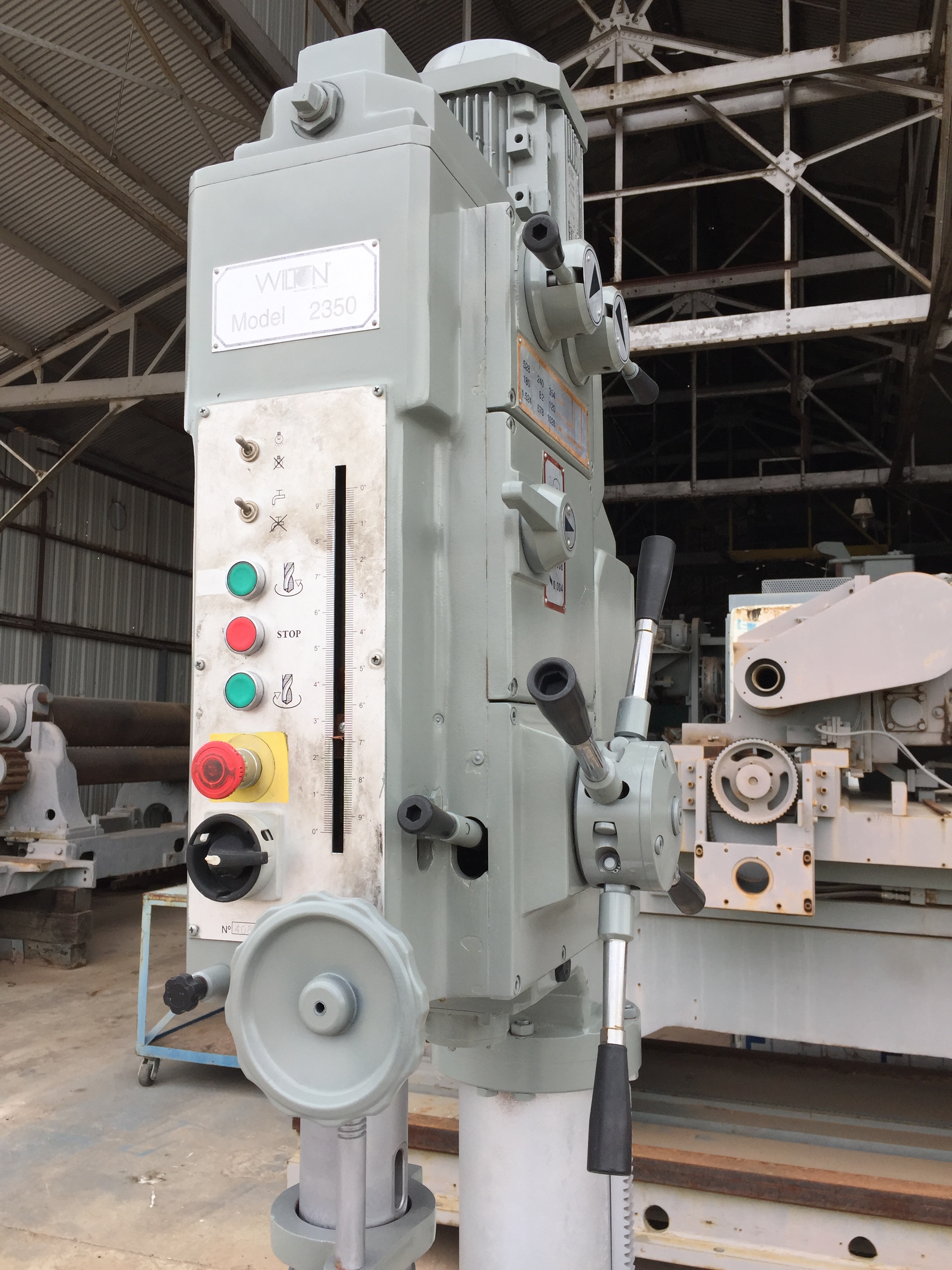

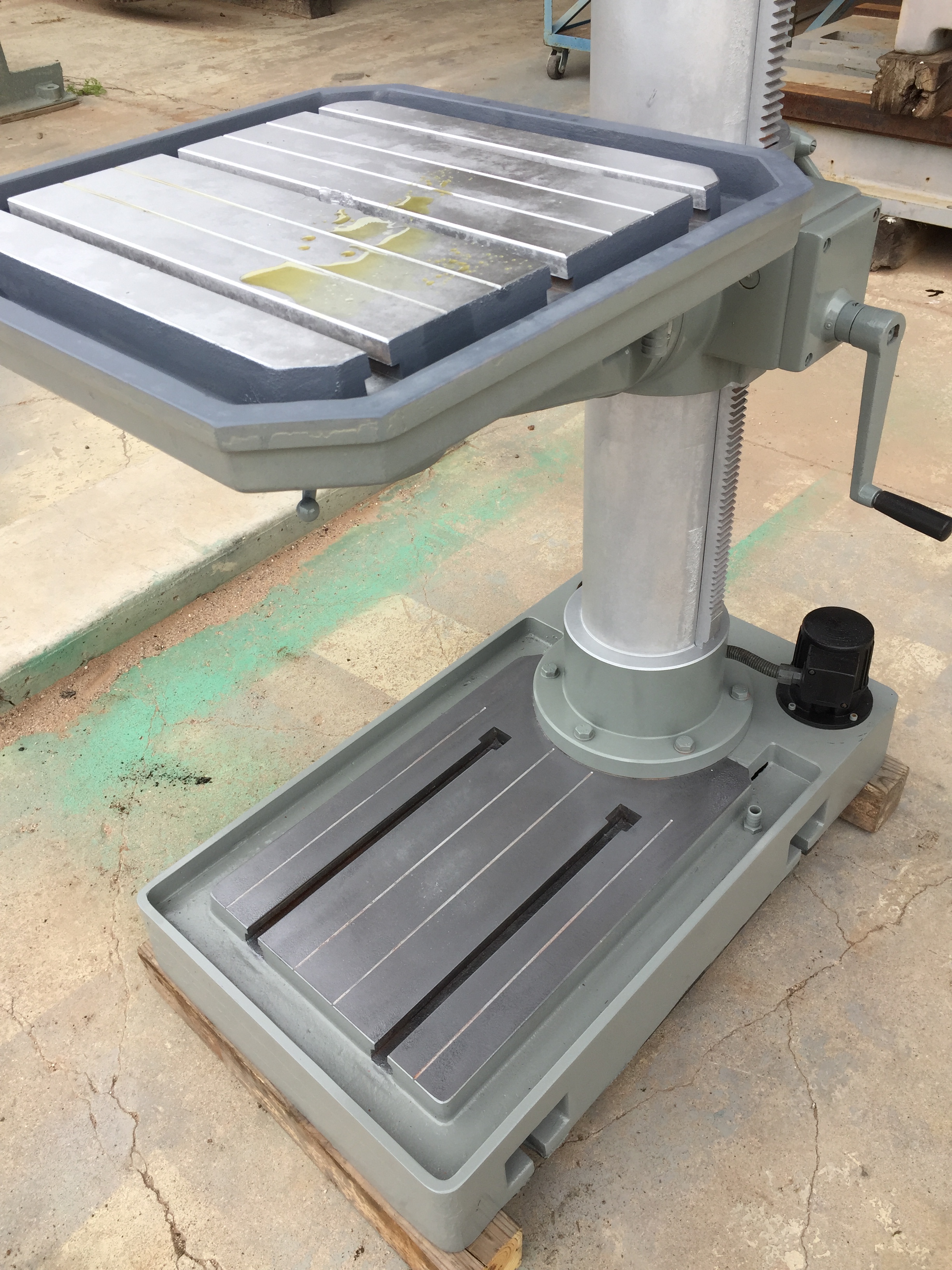

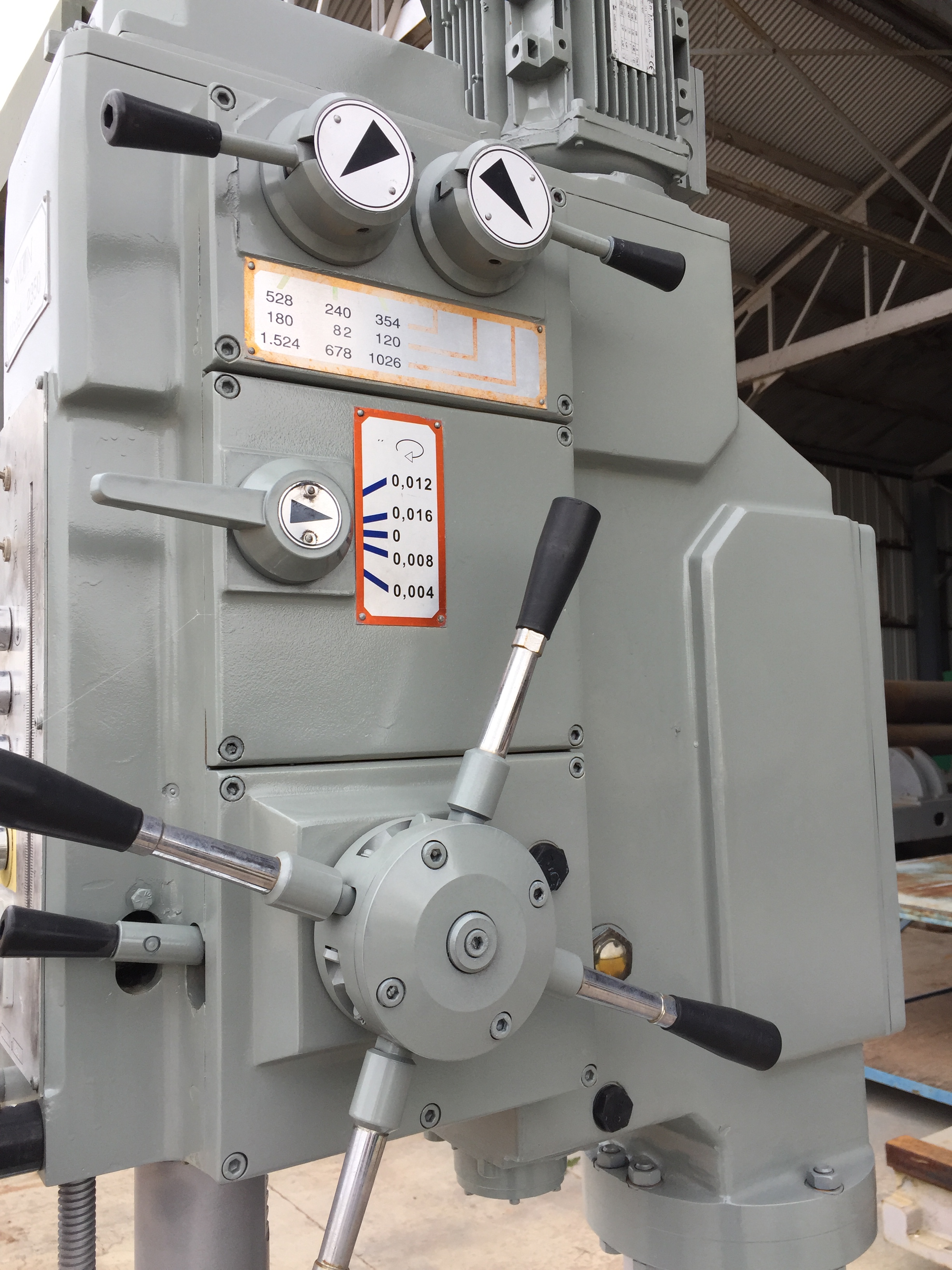

23” Wilton Mdl. 2350 Single Spindle Drill; Pwr. Feed

Record Number: 3962 Asking Price:P.O.R. (1) Used Wilton Drill Press2350  S/N#0840 Specifications: Spindle Taper..................... .........................................#4  M.T. Quill diameter................................................................3.228 Spindle travel.......................................... ......................9" Variable Spindle Speeds (9)...........................................8- 1524 R.P.M. Distance Chuck Nose to Table Top...............................2.67"(min.) -30 " (max.) Table Working Area......................................................25" F-B x 34" L-R Work Table capacity......................................................400lbs Auto Feed......................................................................004" .008".012".016" Distance Floor to Table Top..........................................2.76"min- 40"max Centerline of Spindle to Post.........................................14 Column Post Size............................................................7" Motor...............................................................................3 HP Electrical Characteristics.................................................230/460 VAC / 3 Phase / 60 Cycle Equipped With: Complete Electric Controls Overall Dimensions....................40X 30x 95 Weight..............................1840 lbs. F.O.B.................................Casa Grande, Arizona
