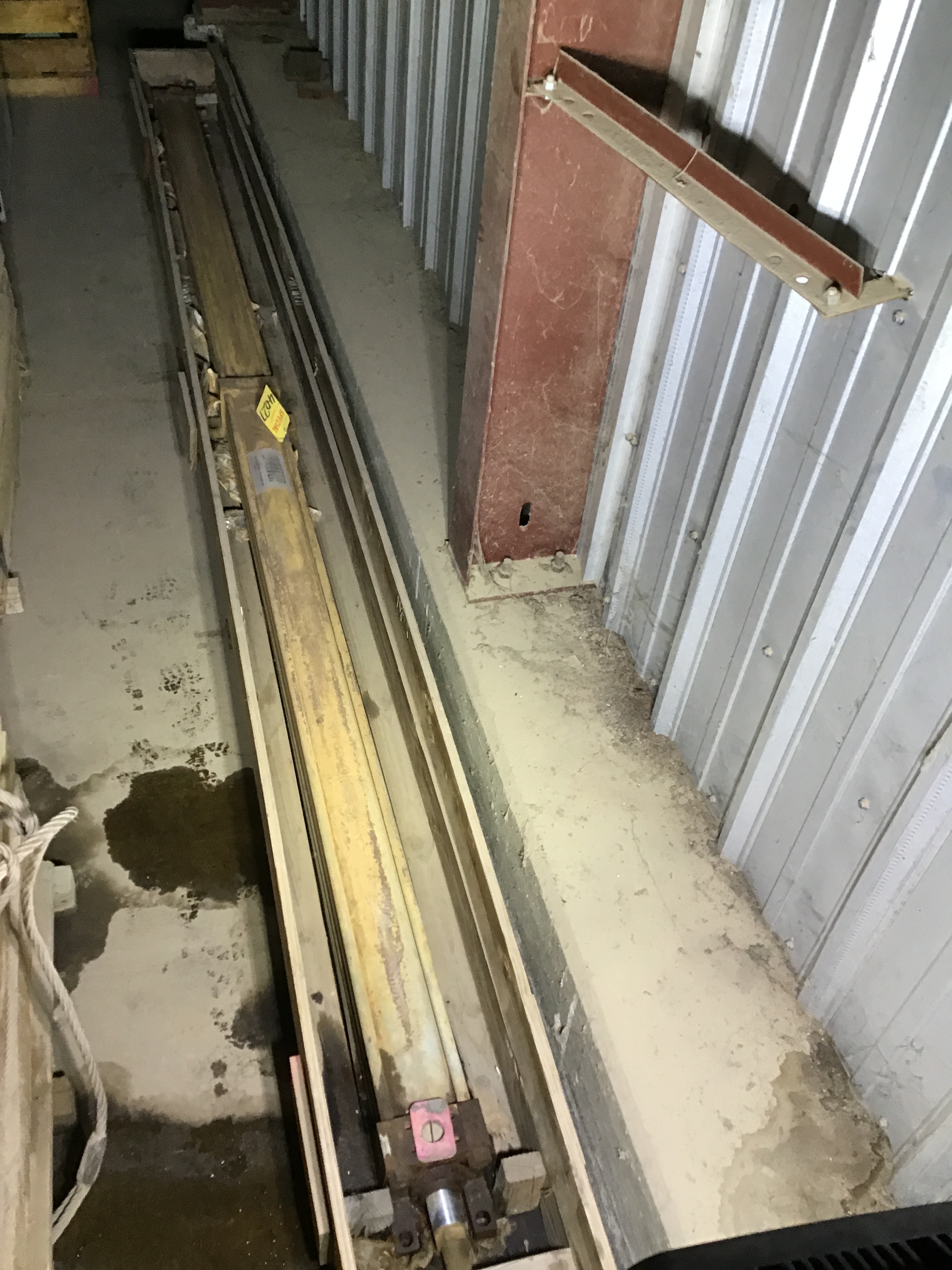

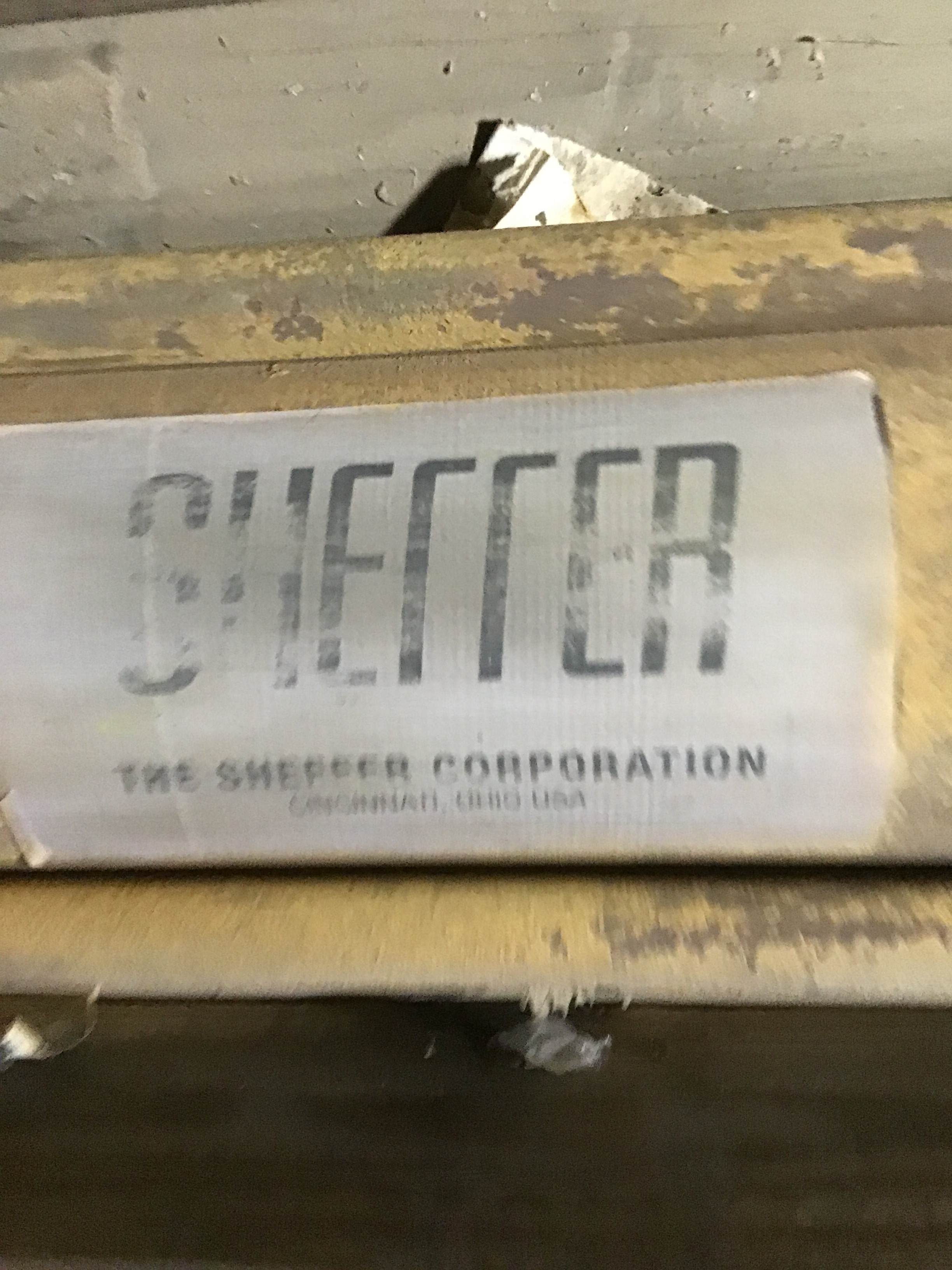

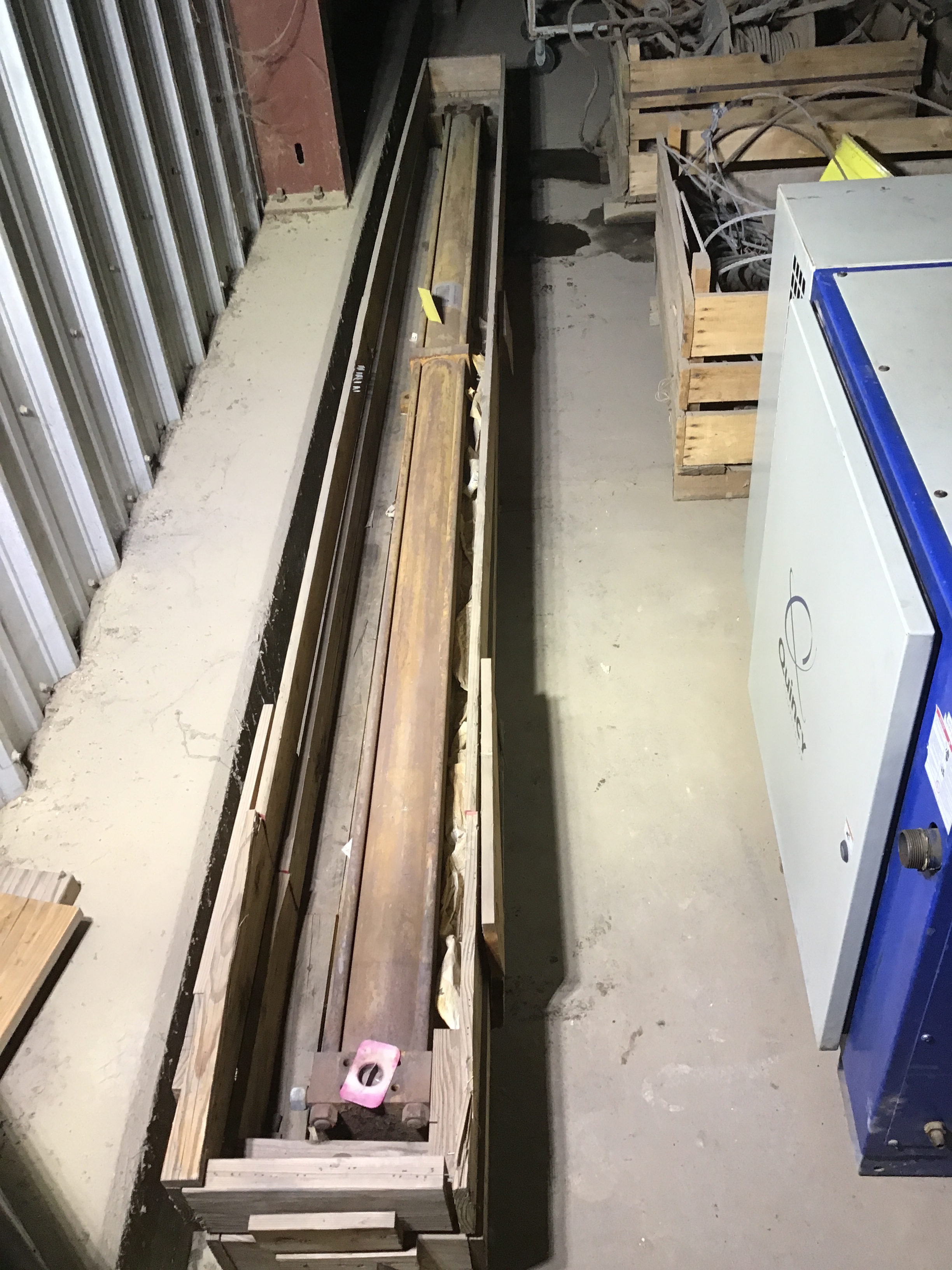

5" bore x 156" stroke Sheffer Hyd. Cylinder

Stroke..................156"

Bore.....................5"

Rod dia................2"

Port size.............. Combination #12 SAE & 1 1/2" flange port

Mounting.............Combination end lug- intermediate lug mount

Manufacturers Specs:

A = HEAD PORT POSITION 2

A = HEAD PORT SIZE 12 SAE PORTS

A = CAP PORT POSITION 6

A = CAP PORT SIZE 12 SAE PORTS

M = COMBINATION END LUG - INTERMEDIATE LUG MOUNT

K = EXTRA PLAIN EXT  2.00

Y = 8 DUAL PISTON /NET STROKE =156

Y = THICKER THAN STANDARD HEAD & CAP. G=2-7/8FOR 1-1/2 FLANGE PORT AT POSTION 1 AND 5

Y = SEALS FOR WATER GLYCOL

PRESSURE RESTRICTIONS,MAX EXTENDED PRESSURE 154 PSI CLASS 3 RATING

**Any other questions refer to attached PDF file**
