26" x 192" LeBlond Regal Lathe; 5" hole
26" x 192" LeBlond Regal Lathe; 5" hole
Location:Casa Grande, AZ
Description

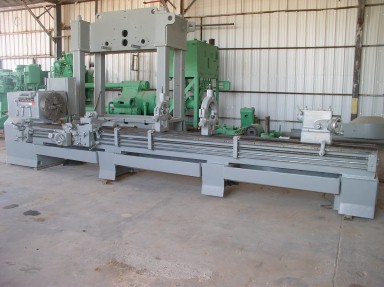

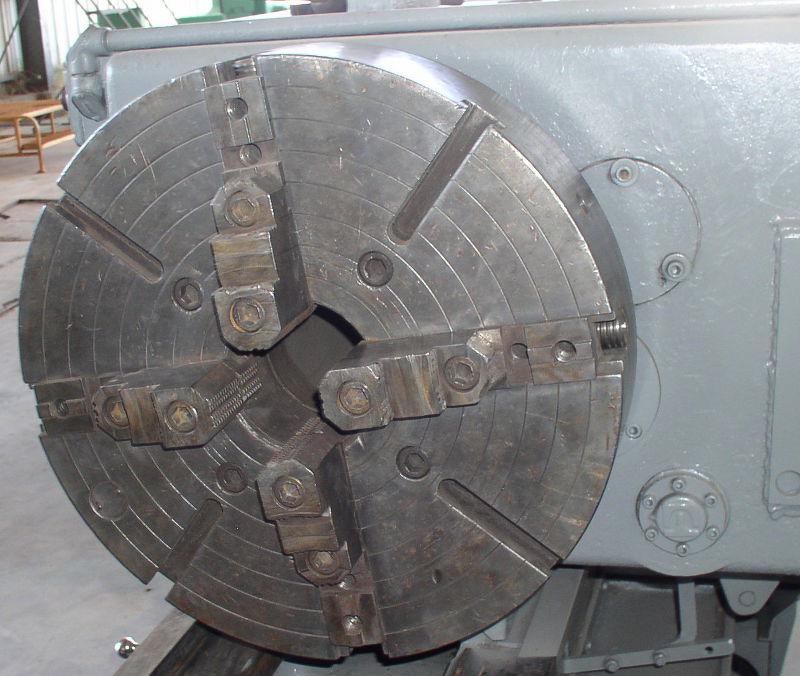

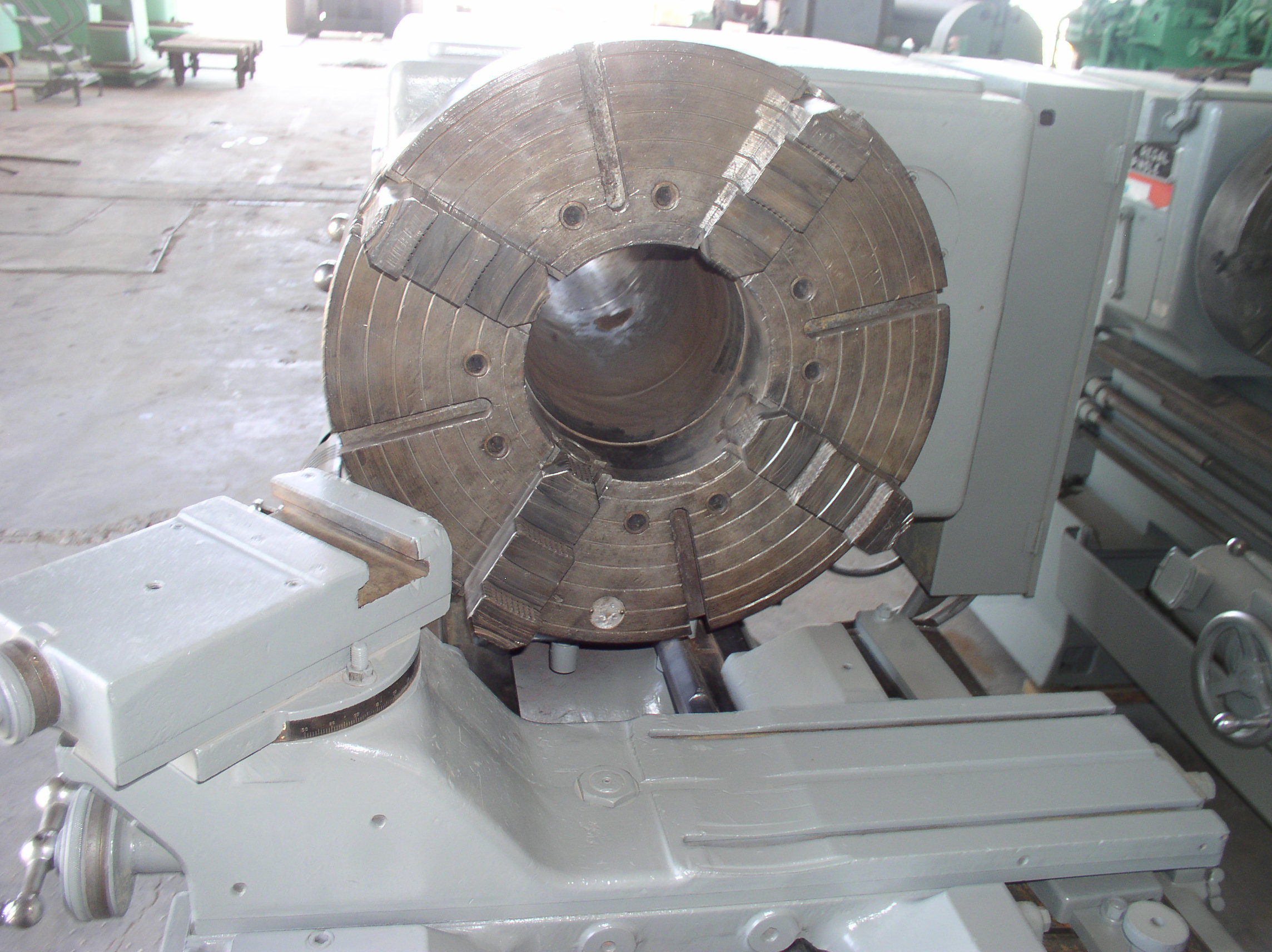

(1) Used 26" x 192" LeBlond Regal Engine Lathe; S/N 6HS217 Specifications: Swing Over Bed........................26" Swing Over Cross Slide................19" Distance Between Centers..............192" max. Spindle Hole..........................5 1/4" Spindle Nose..........................11" D-1 Spindle Speeds........................12-900 RPM Number of Feeds and Threads...........48 Feed Range............................ Thread Pitch Range....................2-112 TPI Main Drive Motor......................20 HP (est.) Electrical Characteristics............230/460 VAC / 3 Ph / 60 Cy Tailstock: 3 1/8" dia quill. 16" travel nominal, #5 Morse taper Equipped With: Hardways Power Feeds Threading (Standard) Rapid Traverse on Carriage Taper Attachment Coolant Pump (1) 21" 4-Jaw Chuck (1) 7" Steady Rest (1) 12" Steady Rest Overall Dimensions....................67" W x 264" L x 70" H Weight................................14,500 lbs. (est.) F.O.B.................................Casa Grande, Arizona
Specifications
Condition | Used |
Stock Number | 2911 |
