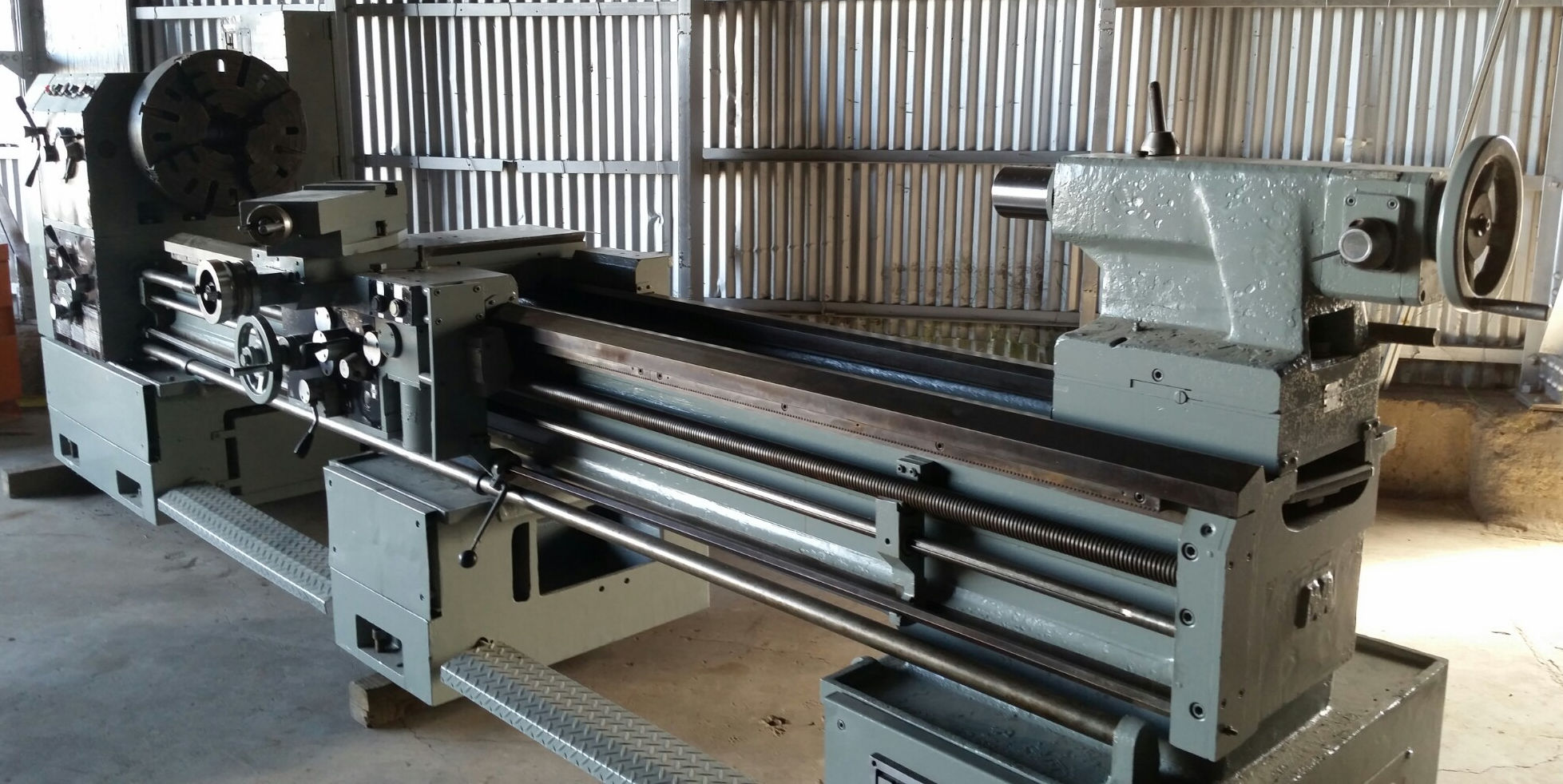

24" Sharp Model 24120K Heavy Duty Precision Lathe

Sold

24" Sharp Model 24120K Heavy Duty Precision Lathe

Location:Casa Grande, AZ

Description

(1) Used Sharp Model 24120K Heavy Duty Precision Lathe; S/N 9293 Specifications: Swing Over Bed...............................24" Swing Over Cross Slide.......................12" (est.) Swing In Gap.................................32" Gap Length...................................12 1/2" Distance Between Centers.....................120" Spindle Hole.................................4 1/8" Spindle Nose.................................Camlock Spindle Speeds (12)..........................25 - 1200 RPM Number of Feeds and Threads..................45 Feed Range (English) ........................0.017" - 0.05" Feed Range (Metric)..........................0.42mm - 0.05mm Thread Pitch Range (English).................2 - 56 TPI Thread Pitch Range (Metric)..................14mm - 0.5mm Main Drive Motor.............................15 HP Electrical Characteristics...................440 VAC / 3 Phase / 60 Cycle Full Load Current............................20.6 A Equipped With: 20" 4-Jaw Chuck D Series Spindle Approx. Overall Dimensions...................182" L x 40" W x 62 1/2" H Weight.......................................7,700 lbs. FOB..........................................Casa Grande, AZ

Specifications

ConditionUsed
Stock Number3518
