600 Ton Farquhar Straight Side Hydraulic Press; 50" x 50" Bed; 72" Stroke; 144" DLO; High Speed; STOCK #266

600 Ton Farquhar Straight Side Hydraulic Press; 50" x 50" Bed; 72" Stroke; 144" DLO; High Speed; STOCK #266

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

This was removed from a Government arsenal in 1990 and has been stored inside since then, It was originally used for making bomb casings for the US government

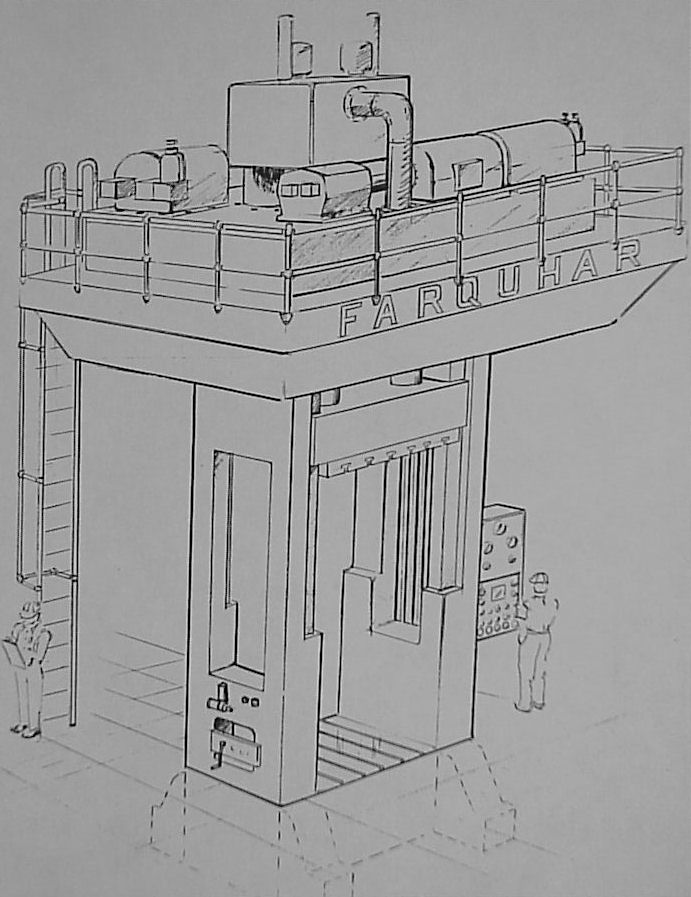

Used 600 Ton Farquhar Model HS-600-H50-50 Vertical Straight Side, Double Action Hydraulic Press; Down-acting Type; Welded Steel/Tie Rod Construction; S/N 24793

Specifications:

Capacity (Tonnage):

Pressing......................................600 Tons

Bed Area...........................................50" x 50"

Ram Area...........................................50" x 50"

Distance Between Housings..........................52"

Stroke………………................................72"

Daylight Opening...................................132"

Diameter of Main Ram...........................15"

Speeds: Closing.......................................1135 I.P.M.

Pressing to 250 Tons................................330 I.P.M.

Pressing to 600 Tons………………………186 I.P.M

Return........................................1135 I.P.M.

Hydraulic System: 3000 P.S.I.

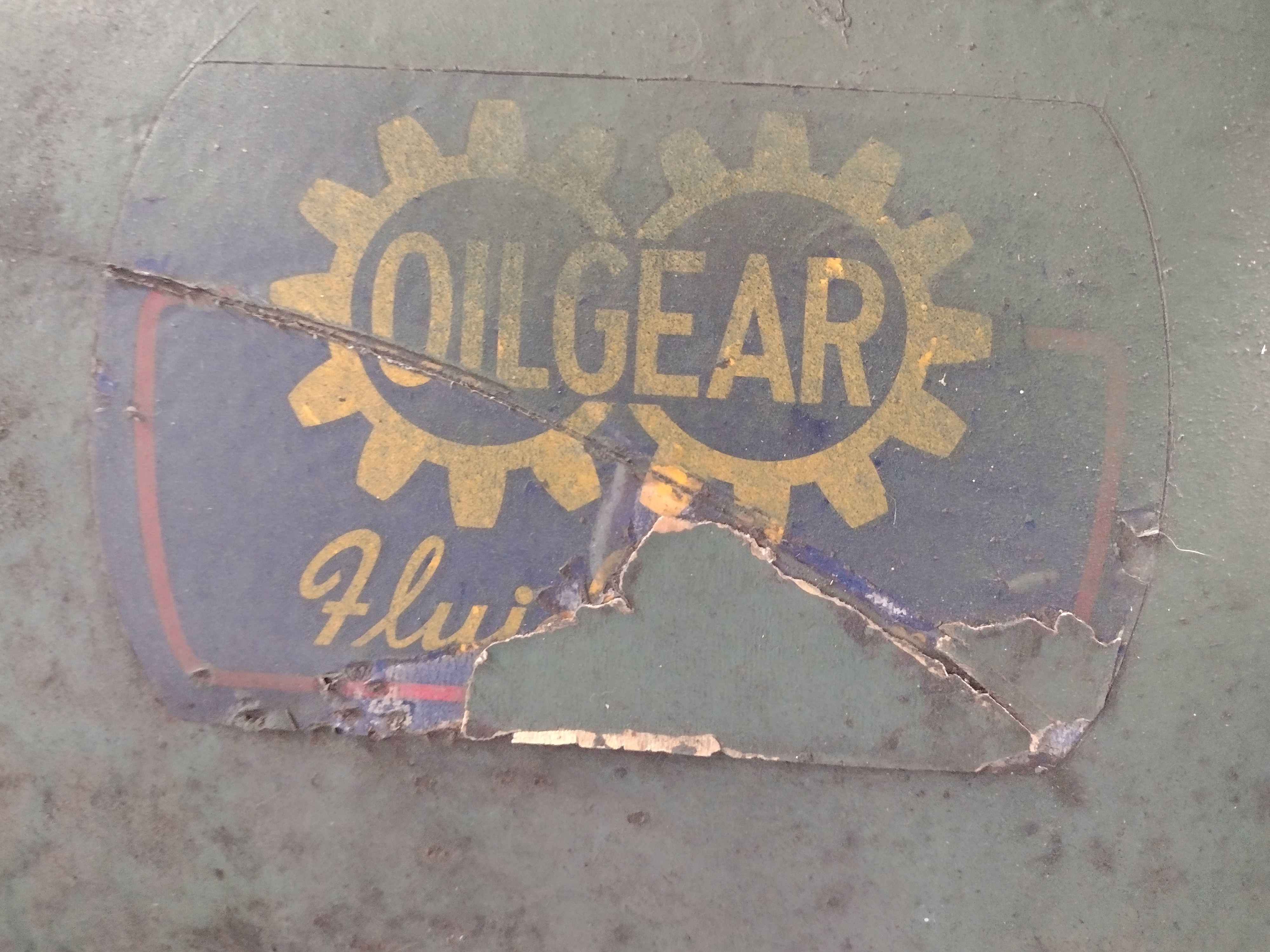

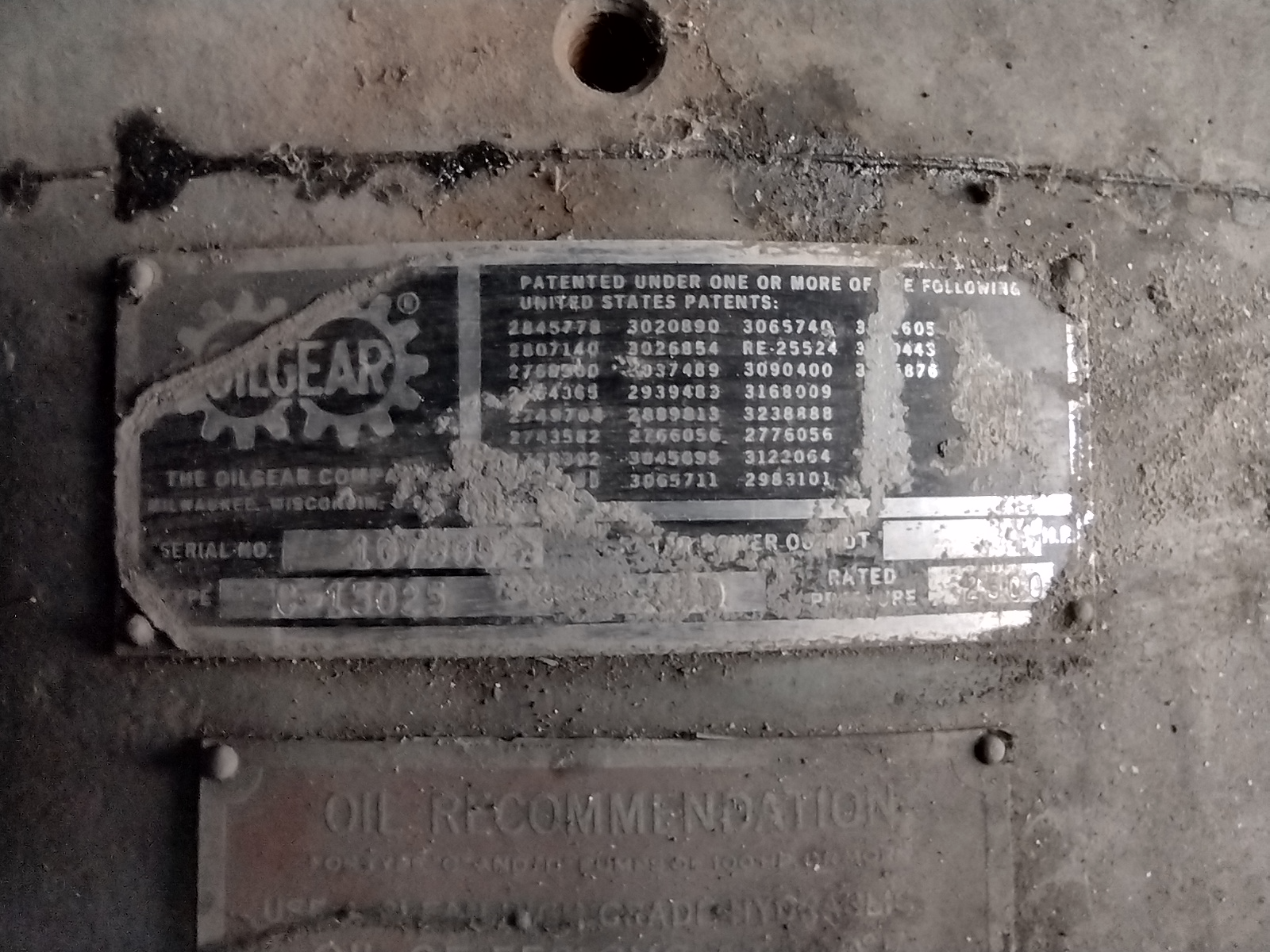

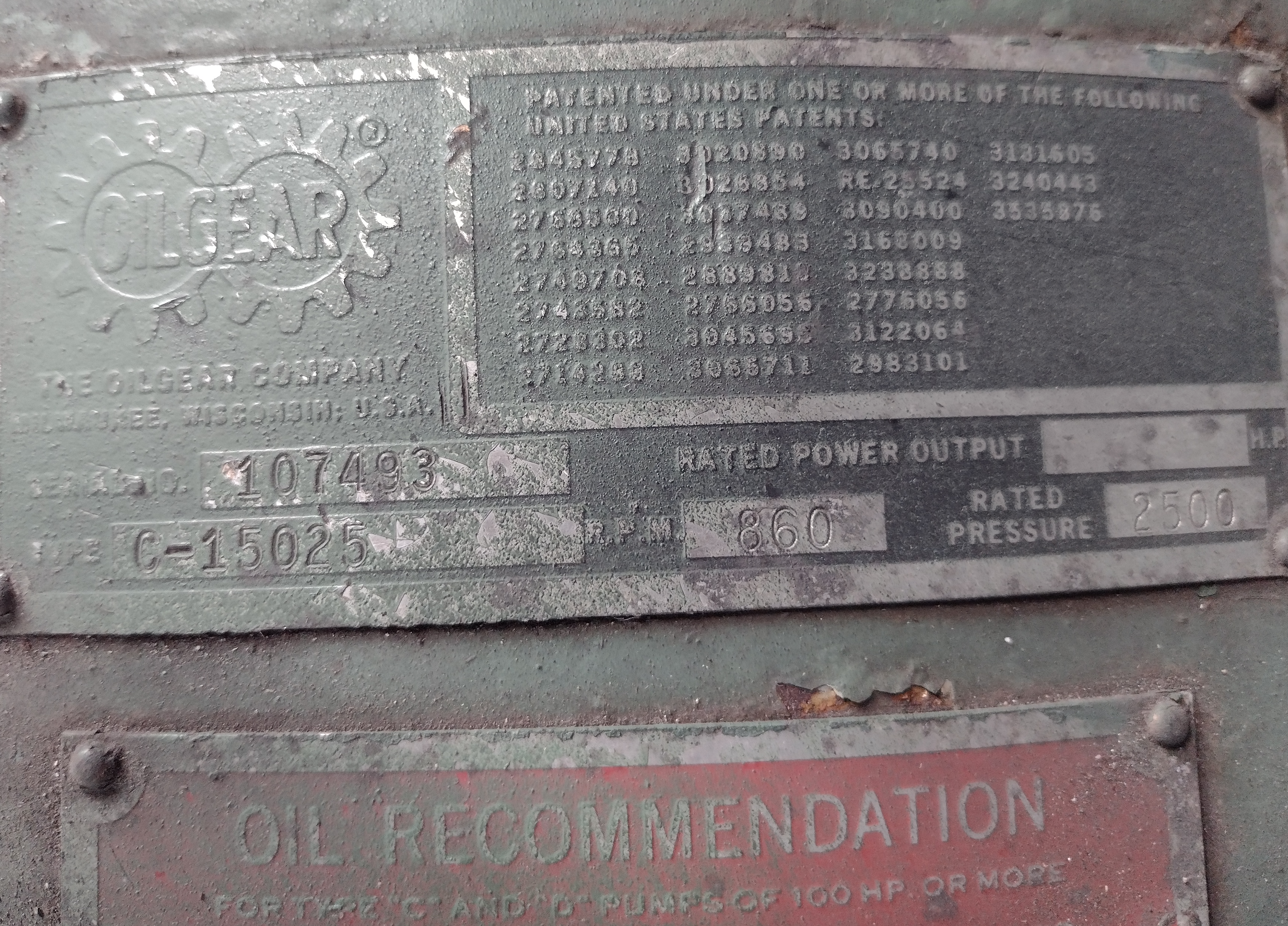

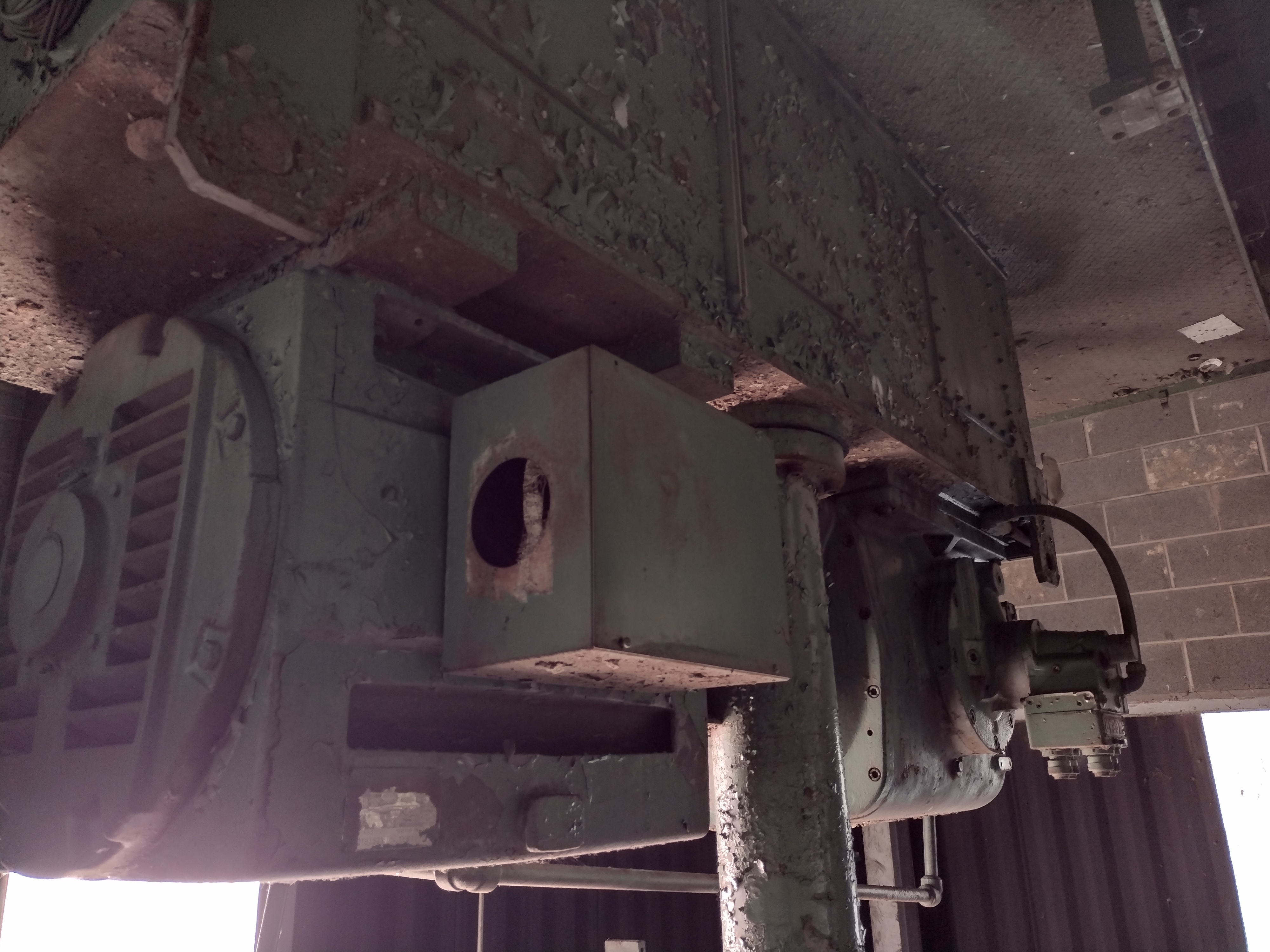

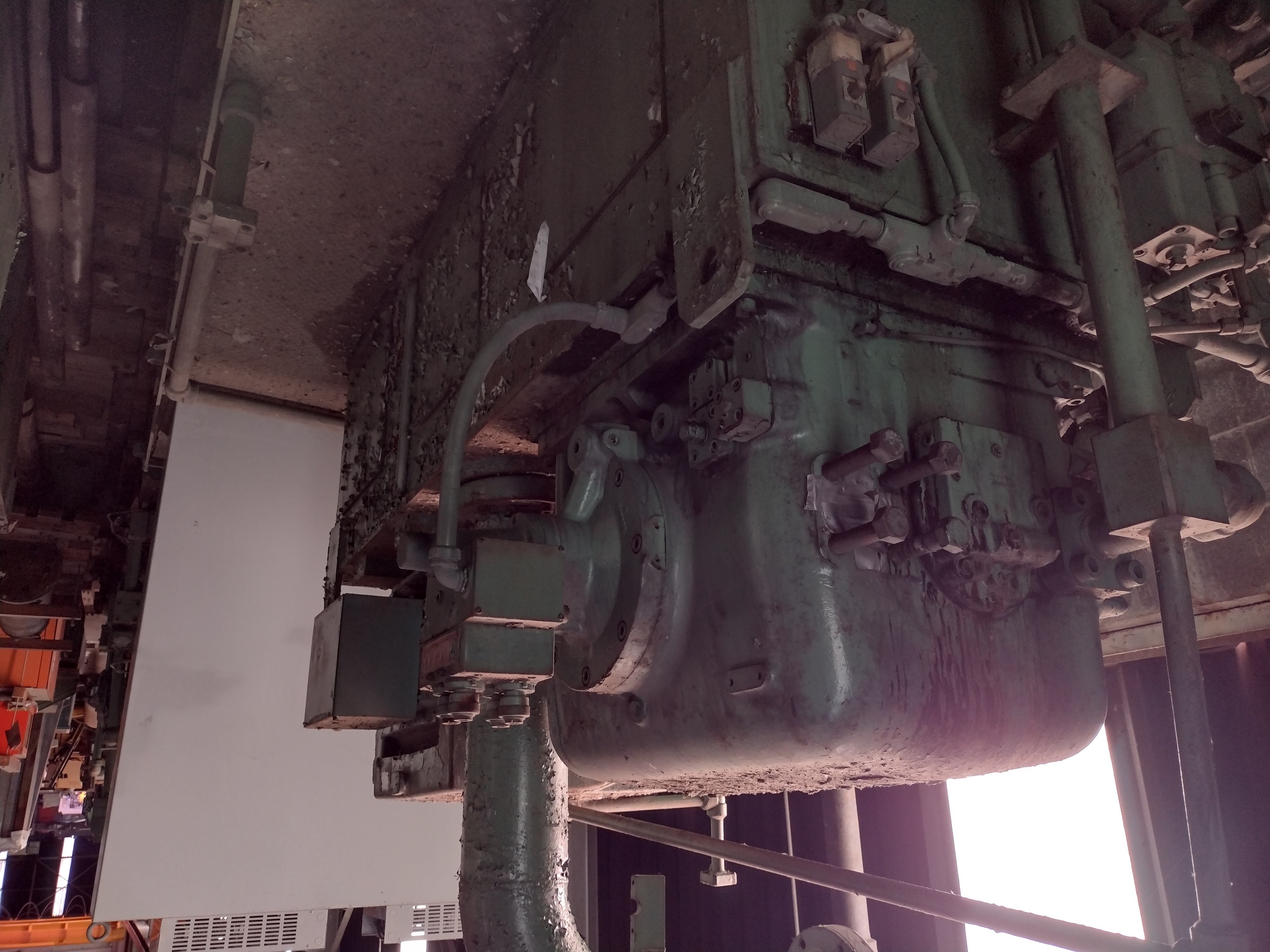

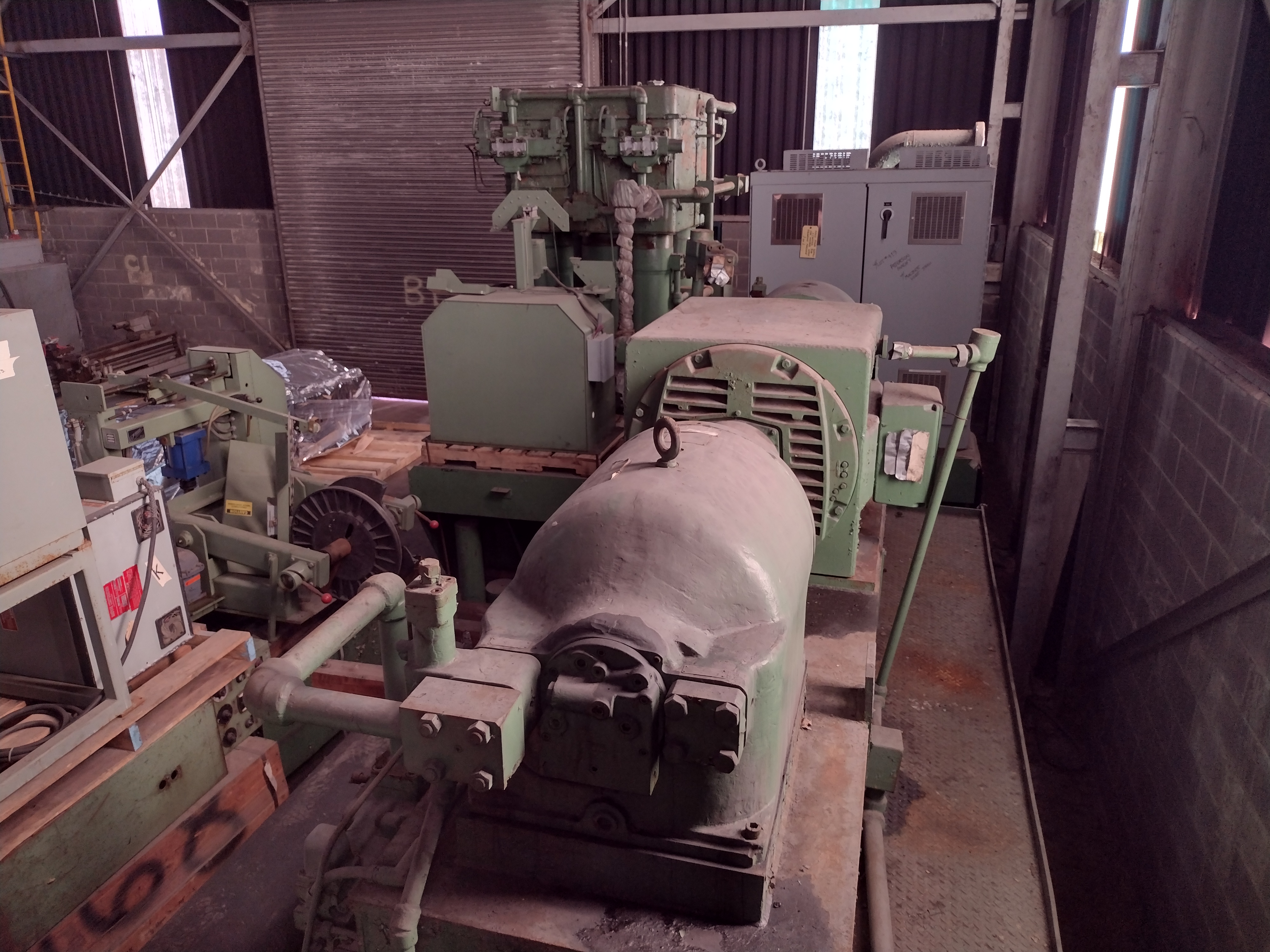

2-Oilgear Model C-15025 Pumps (variable volume radial piston type) Driven by G.E. Custom 8000 Induction 350 HP

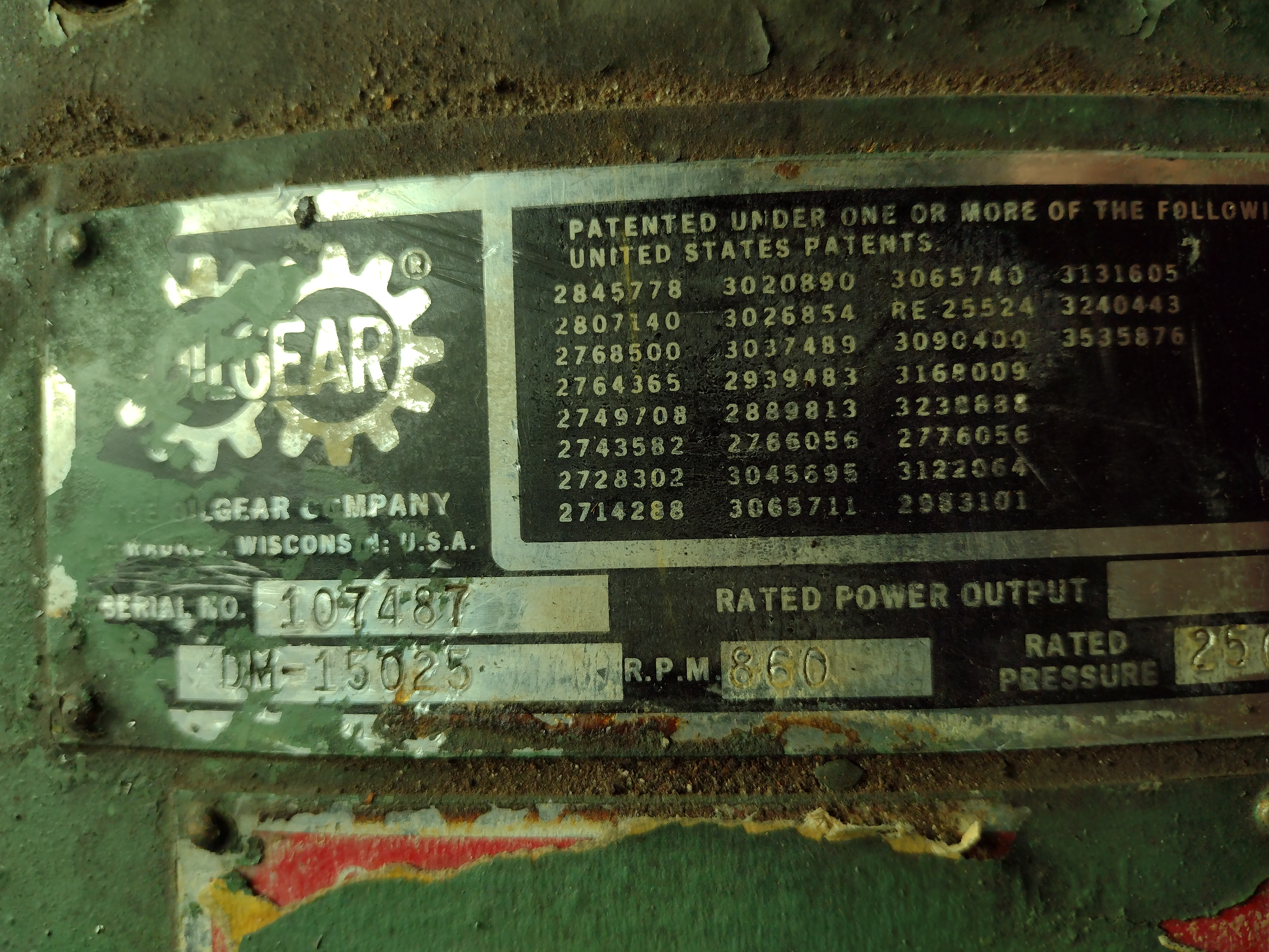

1-Oilgear Model DM-15025 Pump (variable volume radial piston type) Driven by G.E. Custom 8000 Induction 200 HP

Equipped With:

Complete General Electrical Controls

100 Ton Hydraulic Top Ejector - 12” Str.

150 Ton Hydraulic Lower Ejector - 36" Str.

Overall Dimensions.................................8' F-B x 7' L-R x 30' High (est.)

Weight.............................................180,000 lbs. (est.)

Location..............................................Akron, Ohio


Specifications

ManufacturerFarquhar
ConditionUsed
Stock Number266
