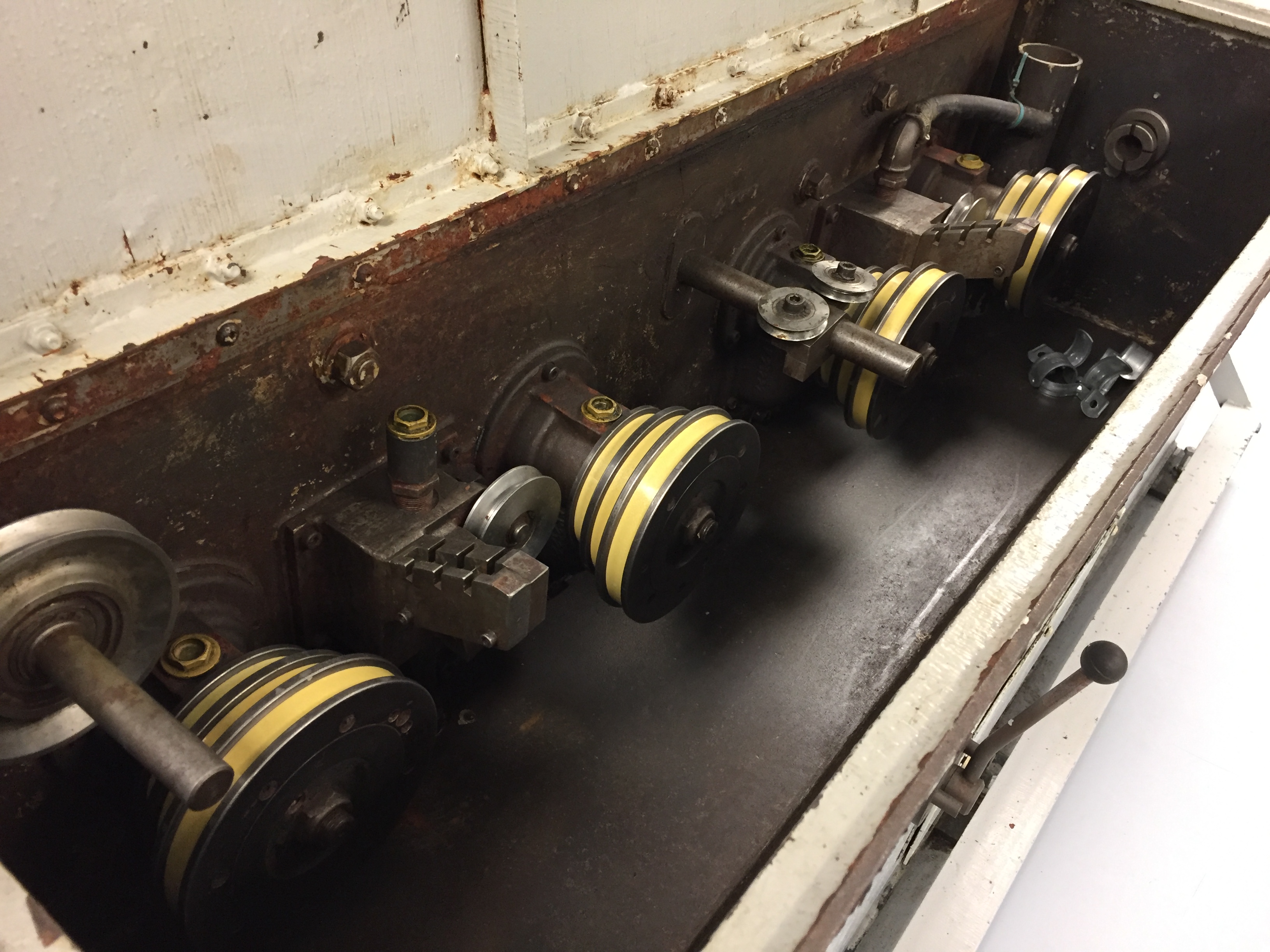

LKI 8 Die Wire Drawing Machine

LKI 8 Stand Wire Draw

Mdl:TGD

Reference: GL

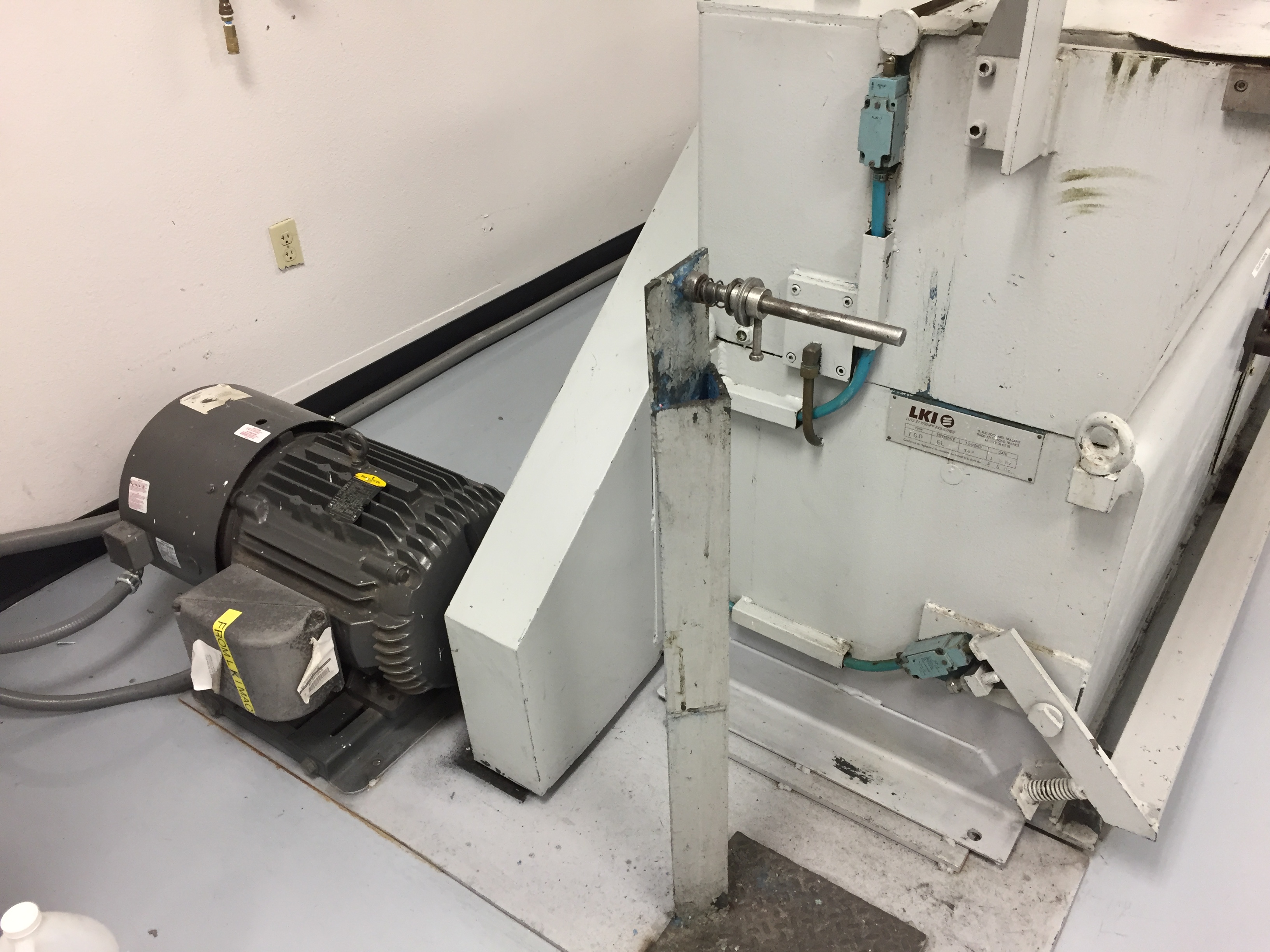

Main drive................................15 HP with electric brake, 1180 RPM

Max incoming wire size............ 3mm (0.118")

Min. output wire size................0.35mm (0.013

Maximum wire output speed..........900 feet/min

Die size.........................................25mm. Dia

Overall Dimensions........................10' Long x 6' wide x 5' high
