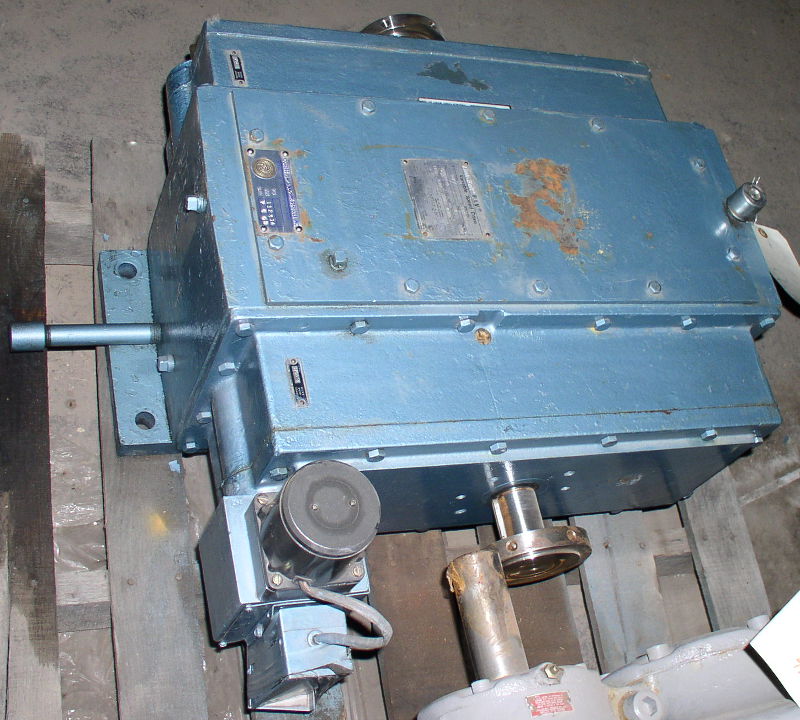

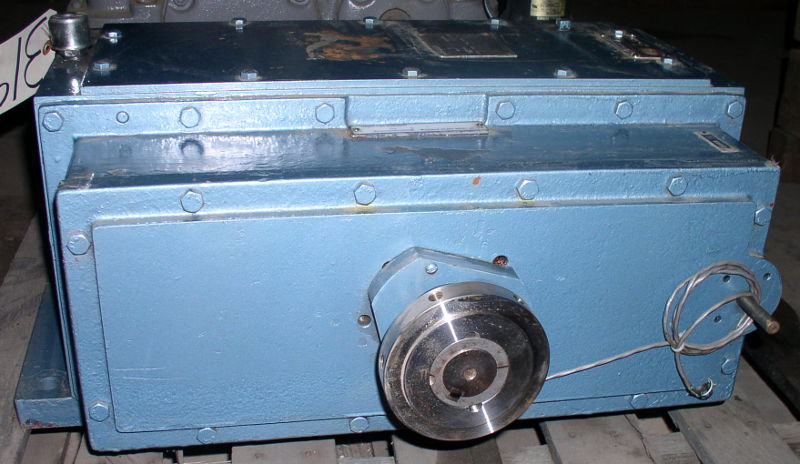

LINK BELT SUX PIV VARIABLE SPEED DRIVE; S/N: L93-39966

LINK BELT SUX PIV VARIABLE SPEED DRIVE; S/N: L93-39966

Location:Casa Grande, AZ

orCall 1-520-836-9727

Description

(1) Used Link Belt Model SUX PIV Variable Speed Drive; S/N L93-39966 Specifications: Unit #.............................................................GH303G-76 Size................................................................300 Ratio of variation............................................3:1 Input Gear Ratio.............................................2:1 Input Speed...................................................1,750 RPM Output Gear Ratio..........................................2.80:1 Input Shaft Diameter.......................................1 1/2" Output Shaft Diameter....................................1 1/2" Output Speed.................................................185-555 RPM Horsepower Rating @ Output RPM.................7.27 HP @ 555 RPM ........................................................................4.20 HP @ 185 RPM Transmission Type..........................................Geared Chain Size.......................................................3-32 Service Factor.................................................1.0 Electrical Characteristics..................................100-115 VAC / 1 Phase / 50/60 Cycle / 0.5 Amps / 20W Equipped With: Electric Remote Control Magnetic Speed Pickup Overall Dimensions.........................................26" L-R x 26" F-B x 13" High Weight............................................................400 lbs. (est.) F.O.B..............................................................Casa Grande, Arizona

Specifications

ConditionUsed
Stock Number3193
