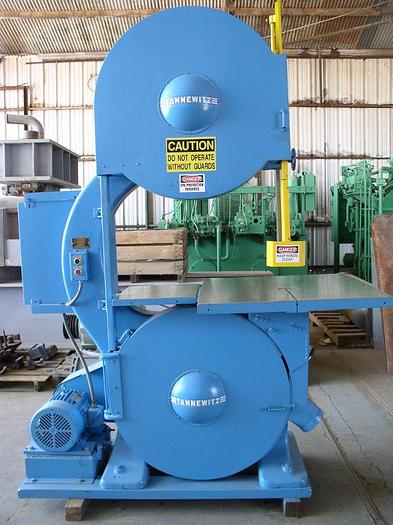

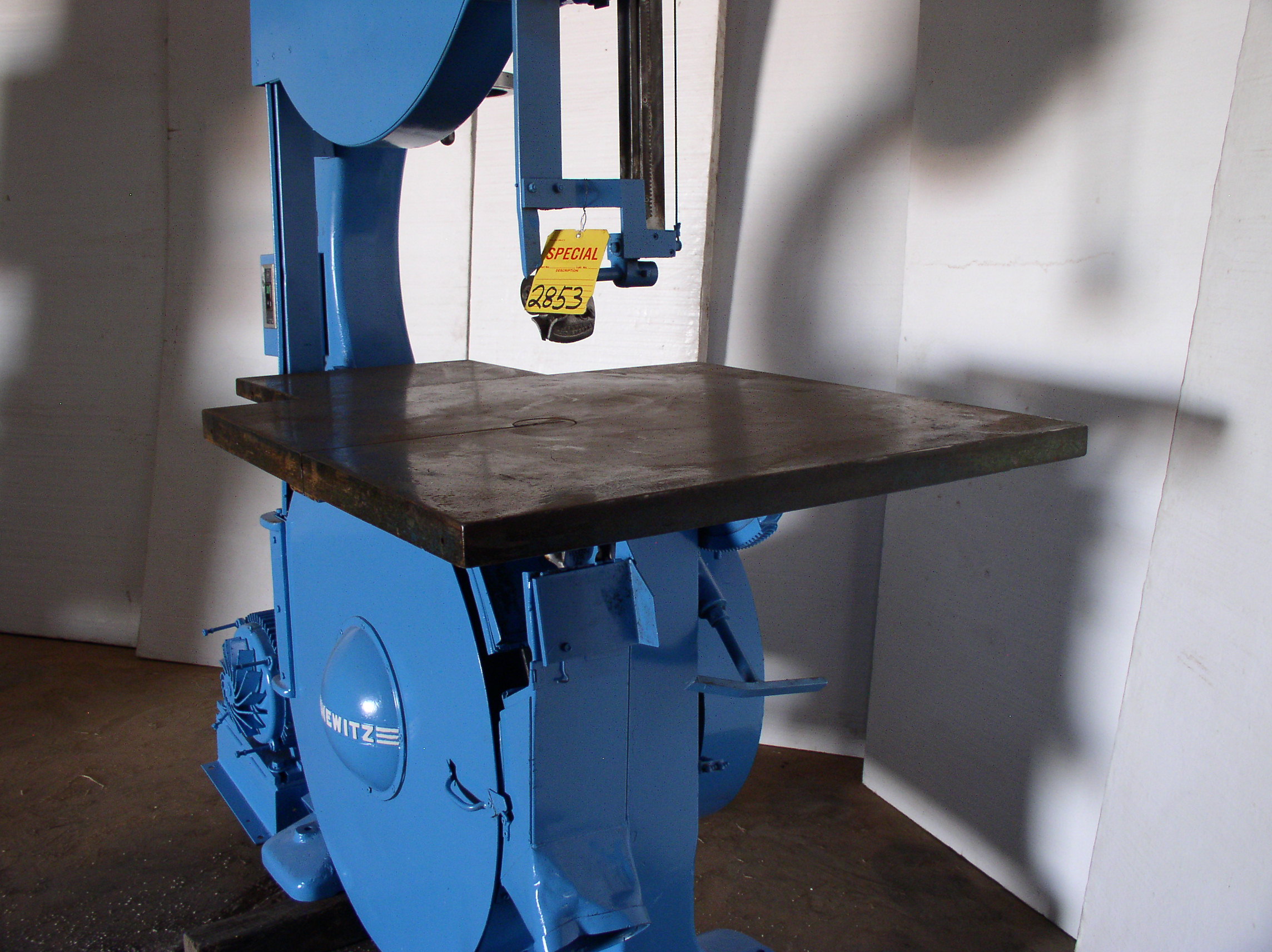

36" Tannewitz Model G1E Vertical Band Saw
36" Tannewitz Model G1E Vertical Band Saw
Location:Casa Grande, AZ
Description
(1) Used 36" Tannewitz Model G1E Vertical Band Saw; S/N 76041 Specifications: Blade Speed......................... Blade Tension Control............... Size, Wheel Diameter................36" Under Guide Capacity................20" Throat Capacity.....................35 1/2" Base Construction...................Cast Iron Band Width Capacity.................1/8" to 1 1/2" Band Length.........................19' 6" Table Size..........................37 1/4" x 35 5/8" Aux. Table Size.....................19 1/2" x 16 1/2" Table Tilting.......................45° Right, 5° Left Upper Wheel Adjustment..............7" Wheel Type..........................Heavy-duty Balanced Steel Disc Gear-Adjusted Guide Post............1 1/4" to 2 1/4" Table Height........................41" Horsepower..........................7 1/2 HP Motor Drive.........................Belt Electrical Characteristics..........230/460VAC / 3 Phase / 60 Cycle Equipped With: Speedi-Change Replaceable Tires Electric 2-Wheel Brakes Complete Electrical Controls Operator's Manual (optional from manufacturer) Overall Dimensions..................37 1/4" W x 78" L x 111" H Weight.............................. FOB.................................Casa Grande, Arizona
Specifications
Model | G1E |
Condition | Used |
Serial Number | 76041 |
Stock Number | 2853 |
