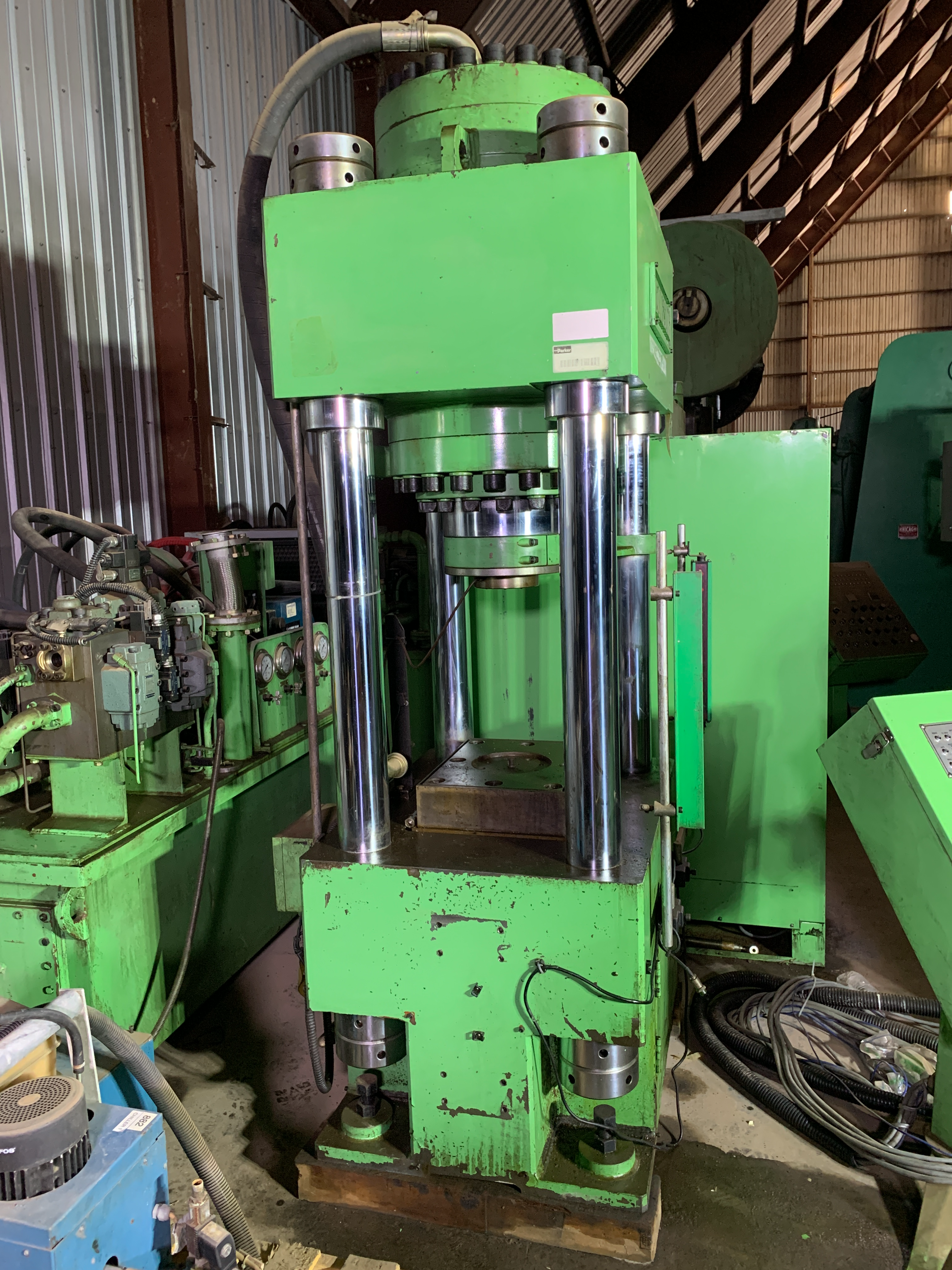

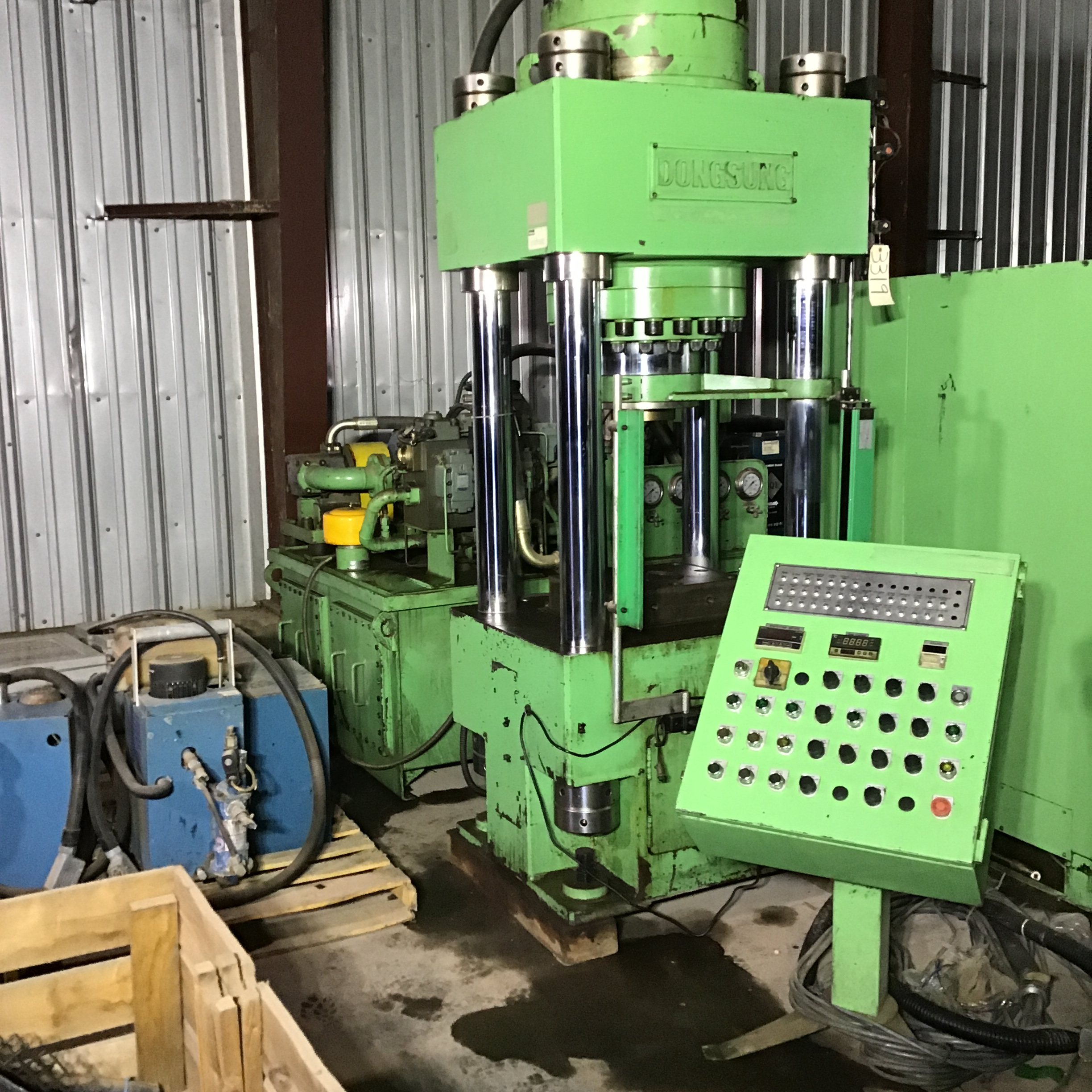

300 Ton Dongsung Hydraulic 4-Post Press
300 Ton Dongsung Hydraulic 4-Post Press
Location:Casa Grande, AZ
Description

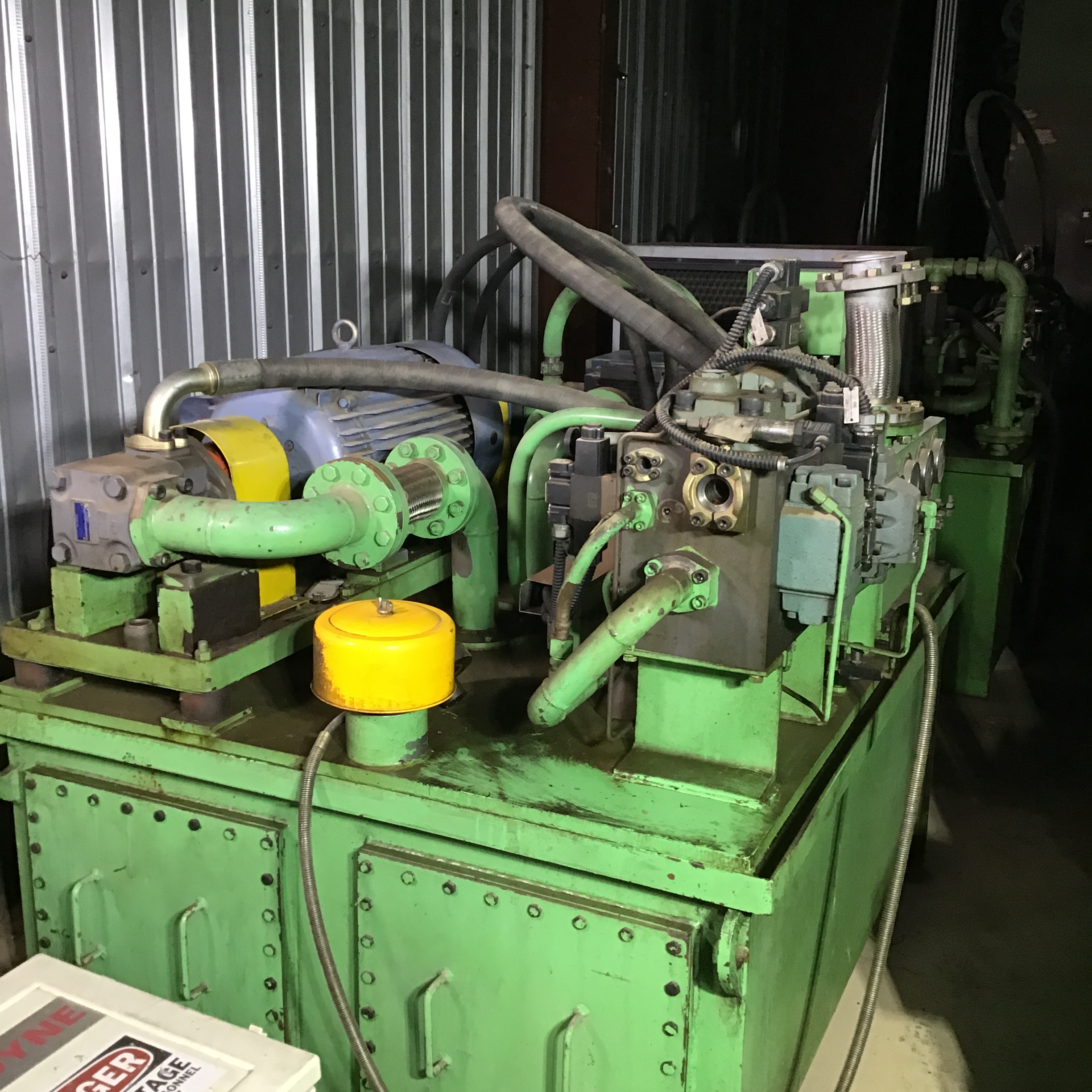

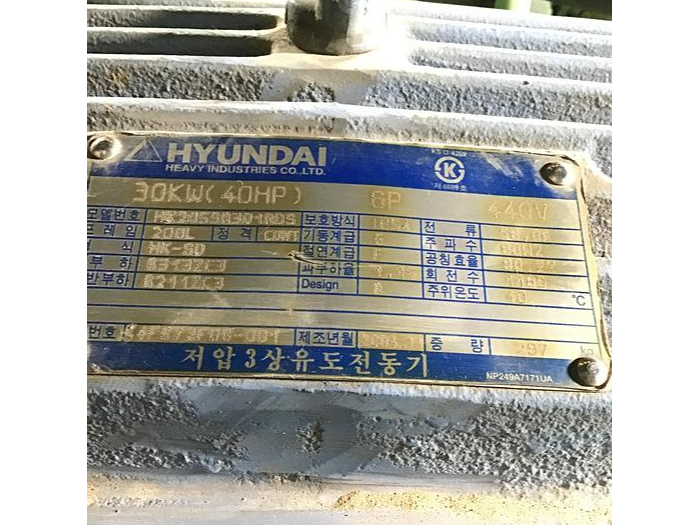

(1) Used Dongsung 300 Ton Hydraulic Press; 4-Post Down-Acting Type with Ejector/Cushion; Mfg. 2005 Specifications: Capacity...........................300 tons Bed Area...........................28 3/4" F-B x 36" L-R Ram Area...........................12" dia. Distance Between Posts.............15 1/2" F-B x 23" L-R Stroke.............................16" (est.) Daylight Opening...................22.5 Distance Floor to Bed..............27" Tie Rod Diameter...................4.5" Number of Pullback Cylinders....... Number of Ram Cylinders............1 Type of Ram Cylinders..............Double Acting Diameter of Ram Cylinder...........14" (nominal) Ram (Slide) Speeds: Pressing...................... Advance....................... Return........................ Hydraulic System Power............. Electrical Characteristics.........440 VAC / 3 Phase / 60 Cycle Equipped With: 40 HP High Volume Hydraulic System F.O.B..............................Casa Grande, AZ
Specifications
Year | 2005 |
Condition | Used |
Stock Number | 3319 |
